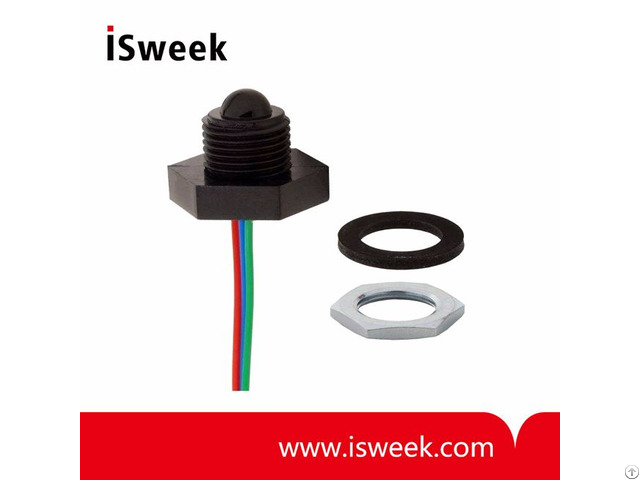

LLE Series Liquid Level Sensors Description

The enhanced series of liquid level sensors incorporates a photo-transistor trigger which provides a digital output that denotes the presence or absence of liquid.

/

The mode of operation is derived from the principle of total internal reflection.

An LED and photo-transistor are housed within a plastic dome at the head of the device.

When no liquid is present, light from the LED is internally reflected from the dome to the photo-transistor.

When liquid covers the dome, the effective refractive index at the dome-liquid boundary changes, allowing some light from the LED to escape.

Thus the amount of light received by the photo- transistor is reduced and the output switches, indicating the presence of liquid.

This method of liquid level sensing is very fast, and almost instantaneous for water.

/

LLE Series Liquid Level Sensors Features

• Solid state technology

• Small size

• Digital output

• Pre-wired

• Electrically robust

/

LLE Series Liquid Level Sensors Benefits

• Accurate, repeatable switching point

• Can be mounted in applications where space is limited

• Microprocessor compatible

• Easy to install, saving assembly time

• Reverse polarity, over voltage, short circuit and transient protection

/

LLE Series Liquid Level Sensors Typical Applications

• Home appliances

• Spa baths

• Vending machines

• Food and beverage

• Medical

• Compressors

• Machine tools

• Automotive

/

LLE Series Liquid Level Sensors Technical Specifications

• Repeatability: ±1mm

• Hysteresis: 2mm (dependent on liquid) • Material: Polysulphone

• Operating temperature: -40 to 125°C (-40°F to 257°F)

• Storage temperature: -40 to 125°C(-40°F to 257°F)

• Supply voltage: 5 Vdc to 12 Vdc

• Supply current: 5 mA nominal @ +5 Vdc
