Logistics 3d X Ray Machine Big Mail Screening Equipment With Motorized Roller Table - China

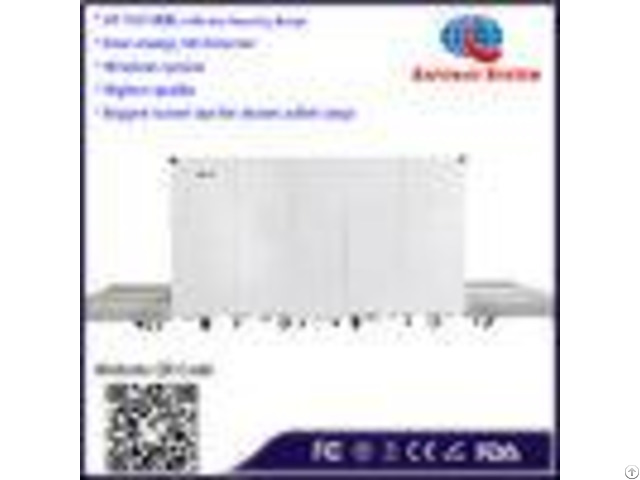

AT150180 160kv Generator Cargo X-ray Scanner and Security X-ray Inspection Machine AT150180 belongs to the X-Ray Cargo Scanner product family, which are designed for the security inspection of the big baggage, luggage and pallet cargo etc.

Biggest model for cargo scanning, conveyor load 2000kgs, motorized roller table.

Its widely used in the airport and logistics.

The operator can easily identify materials with the following coloring scheme: Organic material--orange Inorganic material--blue Mixed material--green High density material--red AT150180 has been specifically designed to meet the needs and application of warehouses, carriers, forwarders and couriers for airport pallet cargo.

AT150180 is a low energy x ray inspection system with tunnel dimensions of 1500mm width and 1800mm height.

It is especially suitable for the inspection of air cargo transported on standard European, US, Asian pallets.

General Specification # Tunnel Size1500(W)*1800(H) mm # Conveyor Speed0.22m/s # Conveyor Max Load2000kg # Dose per Inspection< 2Gy/h # Resolution< 0.101mm Copper Wire # Spatial resolutionLevel: dia1.3mm, Vertical: dia1.0mm # Penetrate resolutionDia 0.511mm # Penetration32-34mm Steel # Film SafetyGuarantee ISO1600 Film # X-ray Leakage<1.5 Gy/h (at a distance of 5cm From external housing) X-ray Generator # Generate direct upward # Generate angle80 degree # Anode Voltage160Kv # Anode power0.5mA # Cooling / Duty CycleOil Cooling /100% Image System # X-ray SensorL-Shaped Photodiode Array (multi-energetic), 12bit Deep # MonitorHigh Resolution Color, LCD Accord, 17 inch # Image ProcessingEdge enhancement, image strengthening, image lightening,, reducing darkening, image returning, image retrieval.

# Image Grey Level4096 # Image Max Resolution1024 * 1280 pixel # Image Processing24bit for processing real time # Image storageStorage 60000 pictures in real time # Zones & Zoom1-9 Image regions, 2, 4, 8, 16 Times Enlarge, Whole screen continuous observation # Multi-energetic distinguish objectsorganic objects in orange, inorganic objects in blue, mixture in green # High-energy/low energyswitch from high energy to low energy # Assist to detect drug and explosive powder Installation Data # Operation temperature/Humidity0C-45 C/20%-95%(non-condensing) # Storage Temperature/Humidity -20C-60C/20%-95%(non-cond ensing) # Operation Power220VAC(10%)503Hz # Power Consumption1.8 KW (max) # Noise: <58db Other Characters optional # Computer system: XP system or windows 7 # UPS camera system and photographic system Optional # Support card reader operator access (optional) # CD DVR/RW unit: Optional # Extension Rollers: Optional (50cm length roller) # Monitor optional: 17 inch DELL brand or 19inch monitor Applications: # Airports, # Transport terminals, # Buildings, # Factories (to find needle in clothing, shoes, bags), # Courthouses, # Embassies, # Military installations, # Prisons, # Hotels, # Schools, # Convention centers, # Security checkpoints, # Special events location
