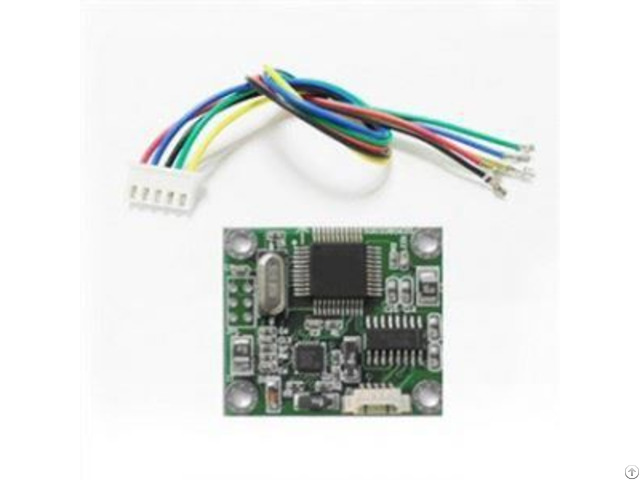

Low Cost 2d Electronic Compass Single Board - China

ER-EC-220:

1 - Heading accuracy 1°, tilt range ±5°;

2 - Measurement range 0~360°;

3 - With hard magnetic, soft magnetic and tilt compensation.

It is a high-precision two-dimensional electronic compass, which measures the azimuth from 0 to 360°.

It is composed of industrial microcontroller with high reliability and strong anti-interference ability, high-precision magnetic sensor drive chips, and integrates hard magnetic interference and soft magnetic interference compensation technology.

It can be customized according to customer needs, and it is very convenient to quickly integrate the electronic compass function into various products.

The product is small in size and low in power consumption, and can be used in many fields such as antenna stability, automotive, and system integration.

Strong shock resistance, can work normally in extremely harsh environments, which is more suitable for today's miniaturized high-precision measurement.

Features

Measurement range 0~360°

Heading accuracy 1°, tilt range ±5°

Industrial grade design

Input voltage DC 5V

Wide temperature working -40~+85℃

With hard magnetic, soft magnetic and tilt compensation

Baud rate 2400~115200 (adjustable)

Working current: 40mA

IP67 protection level

Output RS232/RS485/TTL/MODBUS (optional)

Small volume (33*27*8mm) (customizable) Applications

Individual combat equipment

Satellite solar antenna positioning

AGV car

Mining machinery, oil logging equipment

Medical equipment

Gimp leveling

UAV positioning and navigation

Tilt based monitoring

Various construction machinery angle control

Inspection of bridges and dams
