Low Cost Single Axis Tilt Sensor - China

Introduction

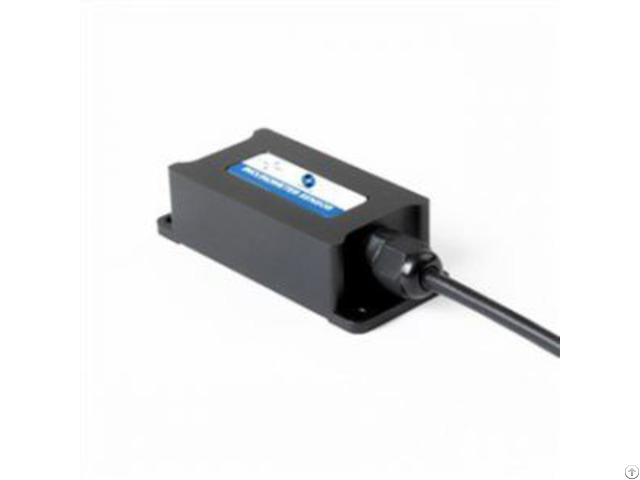

ER-TS-3160VO Voltage Single Axis Tilt Meter is an analog voltage single axis tilt sensor.

Users only need to collect the sensor voltage value which can calculate the current object tilt angle.

The built-in (MEMS) solid pendulum measures the change of static gravity field, which is converted into the change of inclination, and the change is output through the voltage (0~10V, 0.5~4.5V, 0~5V optional).

The product adopts the non-contact measuring principle, which can output the current attitude and inclination angle in real time.

The operation is simple, there is no need to look for two faces with relative changes.

It has the characteristics of small size and strong shock and vibration resistance, especially suitable for harsh industrial environments.

Features

Single axis tilt monitoring

Full range accuracy 0.01°, resolution 0.001°

Output 0~5V, 0.5~4.5V, 0~10V (optional)

Wide voltage input DC 9~36V

Wide temperature working -40~+85℃

Measuring range: 0~±180° (optional)

High vibration resistance>20000g

IP67 Protection

Can output RS232 at the same time, RS485 optional

Small volume (90*40*27mm) (customizable) Applications

Railway gauge ruler, gauge instrument

Satellite solar antenna positioning

High altitude working vehicle

Mining machinery, oil logging equipment

Medical equipment

Tripod head levelling Hydraulic lifting platform

Inclination monitoring

Angle control of various construction machinery

Inspection of bridges and dams
