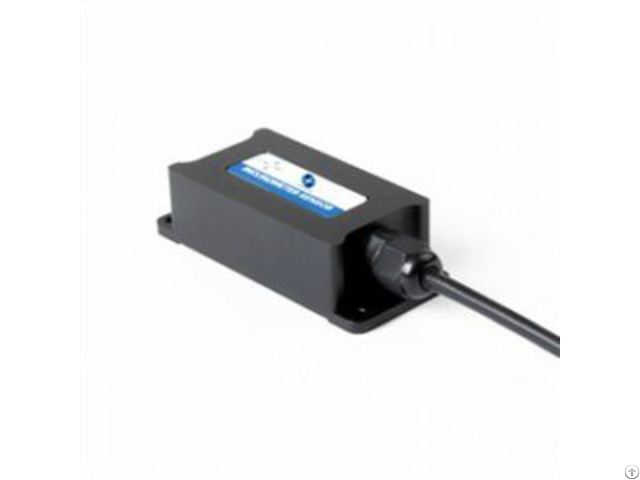

Low Cost Voltage Output Single Axis Tilt Sensor - China

ER-TS-5140VO Features:

1 - Single axis tilt monitoring;

2 - Output: 0-5V, 0-10V (optional);

3 - Full range accuracy 0.3°, resolution 0.05°.

Introduction

ER-TS-5140VO Series tilt sensor is a low-cost single-axis voltage output inclination sensor.

The output voltage is 0~5V, 0.5~4.5V and 0~10V is optional.

It is mainly aimed at the application market where the volume and cost are highly limited.

Due to the built-in inclination unit of a new generation of MEMS production process, the finished product is small in size and low in power consumption.

The consistency and stability of the MEMS process is very high, and its working temperature reaches industrial grade -40~+85℃, which is a cost-effective tilt module.

The product adopts the principle of non-contact measurement, which can output the current attitude and inclination in real time.

The operation is simple, there is no need to look for two surfaces with relative changes.

It has the characteristics of small size and strong shock and vibration resistance, especially suitable for harsh industrial environments.

Featuers

Single axis tilt monitoring

Full range accuracy 0.3°, resolution 0.05°

Output: 0-5V, 0.5~4.5V, 0-10V (optional)

Wide voltage input DC 9~36V

Wide temperature working -40~+85℃

Measuring range: 0~±180°(optional)

High vibration resistance>2500 g

IP67 protection

Industrial design

Small volume (55*37*24mm) (customizable) Applications

Intelligent power transmission line Aerial work truck

Tractor, deep farming machinery

Mining machinery, oil logging equipment

Medical equipment

Tripod head levelling

Hydraulic lifting platform

Inclination monitoring

Angle control of various construction machinery

Inspection of bridges and dams
