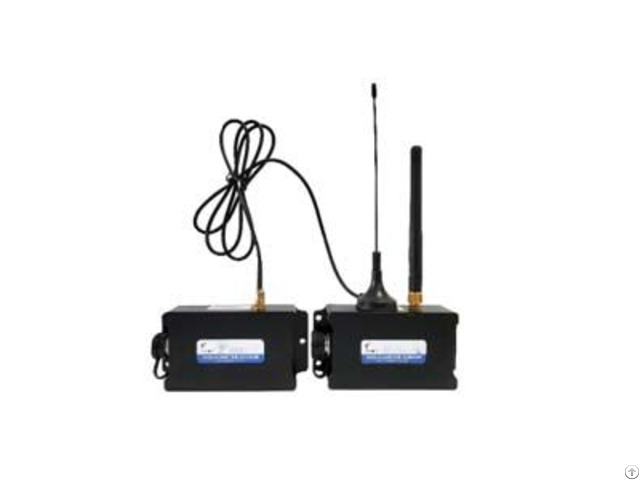

Low Cost Wireless Tilt Sensor - China

ER-TS-4296 Features:

1 - Biaxial tilt monitoring;

2 - Input voltage DC 9~36V;

3 - Full range accuracy 0.1°, resolution 0.01°.

Introduction ER-TS-4296 is a high-performance tilt meter based on Bluetooth and ZigBee (optional) wireless transmission technology.

Its measurement range is 0~±90°, accuracy: 0.1, resolution: 0.01°.

It is suitable for safety monitoring systems in industrial fields, construction and civil engineering 50 meters, ZigBee<450 m.

The wireless digital signal transmission method is compact in structure, small in size, and simple to use, which eliminates the cumbersome wiring and noise interference caused by long cable transmission.

The wireless sensor has the characteristics of industrial-grade design, strong measurement accuracy and strong anti-interference ability.

It can form a huge wireless network to support thousands of measurement points for simultaneous tilt angle monitoring, and support professional computer software for real-time data measurement and recording.

Features

Biaxial tilt monitoring

Full range accuracy 0.1°, resolution 0.01°

Industrial grade design

Input voltage DC 9~36V

Wide temperature working -40~+85℃

Range 0~±90°(optional)

High vibration resistance＞3500 g

The baud rate is adjustable from 2400~115200

IP67 protection level

Wireless transmission mode: Bluetooth, ZigBee optional Small volume (107*55*27mm) (customizable) Applications High voltage power line tower pole monitoring Satellite solar antenna positioning

Aerial work vehicle

Mining machinery, oil logging equipment

Medical equipment

Hydraulic lifting platform

Tilt based monitoring

Various construction machinery angle control

Bridge dam, building monitoring
