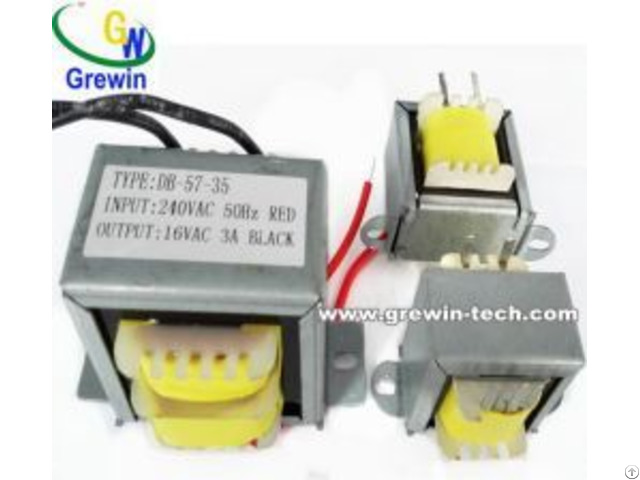

Low Loss Electrical Power Voltage Transformer With Iso9001 2015 - China

We have passed ISO9001: 2015, CE, SGS approval and IEC report 1 - Product Specification: 1).

Models:

EI28, EI30, EI35, EI48, EI57, EI66, EI86, EI96, EI105, EI114, EI133, EI152, EI162 etc.

2).

Maximum output: 1.2W, 2W, 12W, 20W, 35W, 40W, 50W, 90W, 180W, 200W, 400W, 600W, 850W, 1500W, 2400W, 2700W etc.

3).

Input: 100Vac, 110Vac, 115Vac, 120Vac, 220Vac, 230Vac, 240Vac etc.

4).

Output: AC(0--380V); DC(0--50V) 2 - Technical Parameter Table: Brand Name: GREWIN Transformer Mode; EI Coil number: Autotransformer

Phase: Single Core structure Lamination Coil structure: Toroidal

Power: 0.15-1, 500W Input Voltage AC380V-240V-230V-220V-120 V-110V-100V

Application Instruments ;Communication products Output Voltage AC(0--380V); DC(0--50V)

Deliver time 15 working days Package Customized standard cartons ATTENTION: YOU CAN CUSTOMIZED ALL SERIERS ACCORDING TO YOUR REQUERMENT Model Power Dimension(cm) Weight (KG) Voltage regulation Approval mark

A(cm)

±1.5 B(cm)

±2 C(cm)

±2 D(cm)

±2 E(cm)

±2 GWT-EI28 1.5W 43 30 38 28 0.11 35 CE, TUV, GWT-EI35 3.0W 47 37 38 33 0.15 22 CE, TUV, GWT-EI41 11.0W 54 43 47 35 0.32 16.5 CE, TUV, GWT-EI48 25.0W 62 50 65 43 0.57 13.1 CE, TUV, GWT-EI57 40.0W 73 59 65 51 0.84 11.8 CE, TUV, GWT-EI66 80.0W 83 68 80 58 1.38 9.3 CE, TUV, GWT-EI76 140W 64 70 76 85 68 2.25 7.6 CE, TUV, GWT-EI86 180W 72 75 86 92 73 2.82 7.1 CE, TUV, GWT-EI96 250W 80 81 96 90 82 3.36 6 CE, TUV, 3 - Product Feature : 1).

Easy to install.

2).

Lower power consumption.

3).

Little temperature rising.

4).

High accuracy of output voltage.

5).

Diemension and output leads can be customized.

6).

Dielectronic Strength is high.

4 - Application 1).

Measuring instruments.

2).

Communication prducts.

3).

Medical instruments.

4).

Audio & Video

5).

Elevator 5 - Advantage:

1).

UL, CUL, CE, ISO9001: 2008

2).

We offer custom-made transformers, OEM and ODM are welcome

3).

We deliver the quality you expect at consistently competitive prices

4).

Transformer quality lifetime: 10 Years.

5).

Specialty Sales service: 5 -10 Years

6).

Transformers Test: 100% test before the shipment About us:

1 - Tianjin Grewin Technology Co., ltd. has always laying great emphasis on our core business philosophy "Quality and Honesty First ".

2 - Terms of Shipment:

Within 10 working days after received related prepayment or L/C.

3 - Payment terms:

(1).

T/T 100% or 50% deposit by T/T in advance, balance amount to be paid 7 days before

delivery.

(2).

By irrevocable L/C at sight, to be issued immediately against confirmed order.

(3).

Payment by T/T, if order amount is less than USD 20, 000 - Flow chart of trading activities: NO Step Days need 1 Request for quotation 1 day 2 Making quotations 1 day 3 Offer and counter offer 3 days 4 Sending and receiving samples 3-10 days 5 Sample confirmation 3 days 6 Placing a firm order 1 day 7 Paying and receiving the down payment 1-4 day 8 Factory production & Quality inspection 15-20 days 9 Paying and receiving the balance 4 days 10 Delivery of goods 1 days Contact us: Amy Tianjin Grewin Technology Co., Ltd.
