Lox 02 F Luminox Flow Through Optical O2 Sensor - China

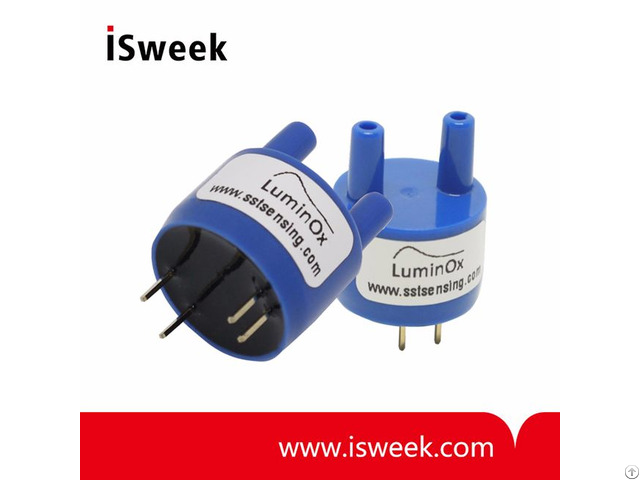

LOX-02-F LuminOx Flow-through Optical Oxygen Sensor General Description

The LuminOx Flow-Through Optical Oxygen Sensor Allows For A Clean Gas Sample Stream Directly Into The Sensor Which Can Be Completely Removed From The Process Environment.

The LuminOx Flow-through Optical Oxygen Sensor is developed and manufactured by SST, it is part of the LuminOx family, which is a range of factory calibrated oxygen sensors which measure ambient oxygen levels using the principle of fluorescence quenching by oxygen, also known as luminescence quenching.

/

The LuminOx Flow-through Optical Oxygen Sensor (LOX-02-F) is an extension to the standard range of LuminOx oxygen sensors.

The original LOX-02 sensor was designed to be completely immersed in the sample gas environment as the base of the sensor is not gas-tight.

/

The flow-through housing style is sealed on the base which allows for a clean gas sample stream into the sensor which can be completely removed from the process environment.

A flow-through housing allows for better sample gas management and options in terms of where the sensor can be situated.

/

LOX-02-F LuminOx Flow-through Optical Oxygen Sensor Features

• Luminescence-based optical technology, NOT electrochemical

• Contains no hazardous materials; RoHS & REACH compliant

• Connects directly to a microcontroller without any additional circuitry

• Factory calibrated

• High accuracy, fast response

• Maintenance free

/

LOX-02-F LuminOx Flow-through Optical Oxygen Sensor Benefits

• Compact, flow-through housing with sealed base

• Low power, long life due to non-depleting sensing principle

• Low cos

/

LOX-02-F LuminOx Flow-through Optical Oxygen Sensor Technical Specifications

• Oxygen range: 0 - 25% O2

• Oxygen pressure range: 0 - 300mbar ppO2

• Response time: T90 < 10s (typical)

• Supply voltage: 4.5 - 5.5V DC

• Supply current: <7.5mA (streaming one sample per second), <20mA Peak

• Output Type 3.3V TTL level USART

• Operating Temperature: -30°C to +60°C

• Humidity: 0 - 99% Rh (non-condensing)

• Barometric pressure range: 500 to 1200mbar

• Maximum flow rate: 1.0 litre/min
