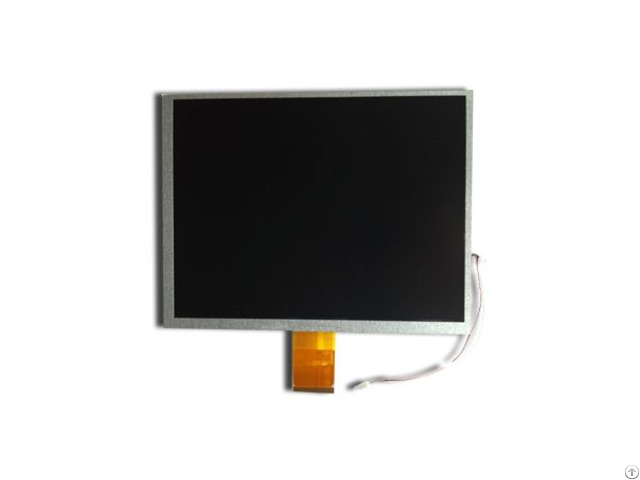

Lsa40at9001 Innolux 10 4 Inch 800 600 Tft Lcd Module - China

Productor CMI INNOLUX

MODEL LSA40AT9001

Size 10.4"

Resolution 800*600

Resolution Name SVGA

Display scale 4: 3

Pixel Arrangement RGB

Pixel Pitch 0.088*0.264 mm

Panel Composition LCD, Technology a-Si TFT-LCD

Display mode TN, nw, Transmissive

Luminance 250 nits

Contrast Ratio 500: 1

Color 262K/16.2M

Color Saturation 50%NTSC(CIE1931)

Response 10/15 (Tr/Td) ms

Viewing Angle 50/60/70/70

The Best View 6 o'clock

White Field Chroma X: 0.310; Y: 0.330

White Field Dynamic X: 0.310;Y: 0.330

Scanning Frequency 60Hz

Reverse Scan No

The kind of Singnal Parallel

Interface Parallel

Singnal Interface Definition BLE-2PINS-CA

Drive-screen voltage 3.3/10.5V (VCC/AVDD)

Input Current 6/40mA (ICC/AIDD)

Brand of Singnal Interface JST

Pitch of Singnal Interface 3.5 mm

Quantity of Singnal Interface 1 pcs

Pin of Singnal Interface 2 pins

Operation Temperature -10 °C ~ 50 °C

Storage Temperature -20°C ~ 60°C

Surface Technology Hard coating (3H)

Active Area 211.2*158.4 mm

Display Area 214.2*162.5

Outline 228.40* 175.40*5.90 mm

Touch Panel NO
