Ltr 390uv 01 Low Voltage I2c Ambient Light And Ultraviolet Sensor - China

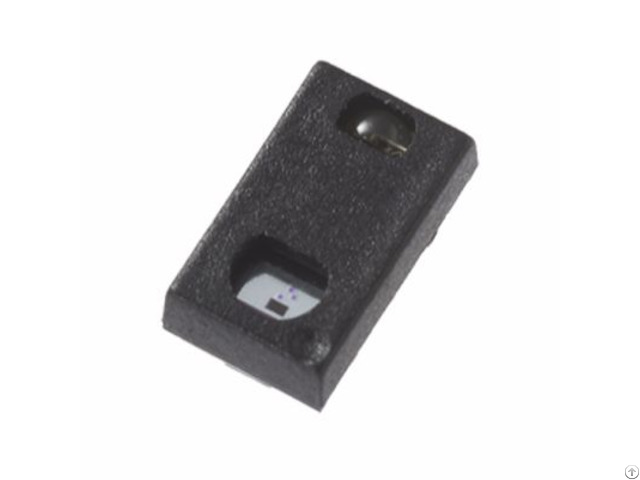

LTR-390UV-01 Ambient Light Sensor and Ultraviolet Light Sensor Description

The LTR-390UV-01 is an integrated low voltage I2C ambient light sensor (ALS) and ultraviolet light sensor (UVS) in a single miniature 2x2mm chipled lead-free surface mount package.

This sensor converts light intensity to a digital output signal capable of direct I2C interface.

It provides a linear ALS response over a wide dynamic range, and is well suited to applications under high ambient brightness.

The sensor has a programmable interrupt with hysteresis to response to events and that removes the need to poll the sensor for a reading which improves system efficiency.

This CMOS design and factory-set one time trimming capability ensure minimal sensor-to-sensor variations for ease of manufacturability to the end customers.

LTR-390UV-01 Ambient Light Sensor and Ultraviolet Light Sensor Application

• Identifying the UV index in ambient light helps people to effectively protect themselves from sunburns, cancer or eye damage.

• To control brightness and color of the display panel in mobile, computing, and consumer devices.

LTR-390UV-01 Ambient Light Sensor and Ultraviolet Light Sensor Features • I2C interface capable of Standard mode at 100kHz or Fast mode at 400kHz communication; 1.8V logic compatible • Ambient Light / Ultraviolet light (UVS) Technology in one ultra-small 2x2mm ChipLED package

• Very low power consumption with sleep mode capability

• Operating voltage ranges: 1.7V to 3.6V

• Operating temperature ranges: -40 to +85°C

• Built-in temperature compensation circuit

• Programmable interrupt function for ALS, UVS with upper and lower thresholds

• RoHS and Halogen free compliant

• UVS/ALS Features - 13 to 20bits effective resolution - Wide dynamic range of 1: 18, 000, 000 with linear response - Close to human eye spectral response - Automatic rejection for 50Hz/60Hz lighting flicker
