Lvl 100 Series Toughsonic Chem 10 Ultrasonic Level Sensor - China

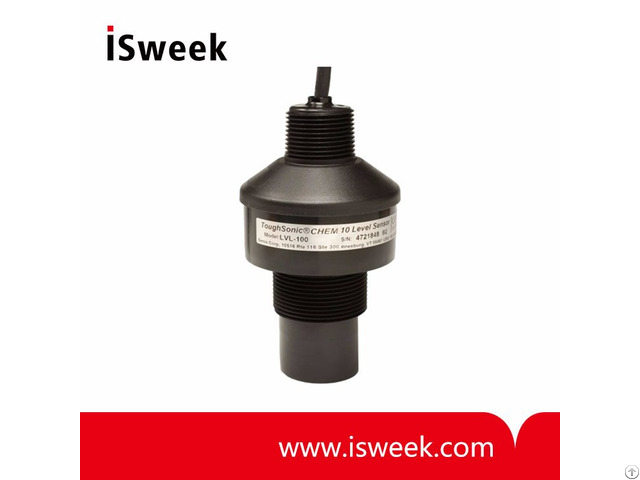

ToughSonic CHEM 10 Level Sensor

Liquids or Solids in Chemically Aggressive Environments

/

CHEM series sensors and SenixVIEW software put the power of ultrasonics in your hands.

You can quickly adjust, optimize, save and clone your applications quickly without calibration!

/

These sensors are housed in a rugged, chemically inert PVDF sealed housing for long life.

They mount above the material surface and measure distance downward without contact.

Outputs respond to that measured distance.

/

Applications include pump control, bulk inventory, batch processing, water management and high/low level alarms.

/

Non-Contact Ultrasonic Distance & Level Measurement

/

LVL-100 Series Chemically Resistant Ultrasonic Level Sensor Features

Level Measurements

• Long or short measurements

• Unaffected by optical factors like color and transparency

• Computer (PC) software allows remote adjustment

Packaging & Performance

• Durable housing for long life

• Bottom and top thread mounts

• Short & overload protected I/O

• Adjustable filters compensate for tank mixers or turbulence

• Temperature compensation for improved accuracy

• Adjustable sensitivity

Free Functionality

Use adjustable interface features like switch hysteresis and time delays to build complete solutions such as pump controls to maintain level.

Save cost by eliminating PLCs, delay circuits and time delay relays!

/

LVL-100 Series Chemically Resistant Ultrasonic Level Sensor Specifications

• Optimum Range: 80 in.

(2 m) • Max Range: 10 ft.

(3 m) • Deadband: Typ.

< 4 in.

(100 mm) • Temperature: -40 to 158 ℉ (-40 to 70℃) • Outputs: Five selectable, plus serial data • Humidity: 0 to 100% operating /

LVL-100 Series Chemically Resistant Ultrasonic Level Sensor Part Numbers

LVL-100-232: Serial RS-232 interface (PC COM port compatible)

LVL-100-485: Serial RS-485 interface (allows addressable multi-sensor networks)
