Lvl 500 Series Toughsonic Chem 35 Ultrasonic Level Sensor - China

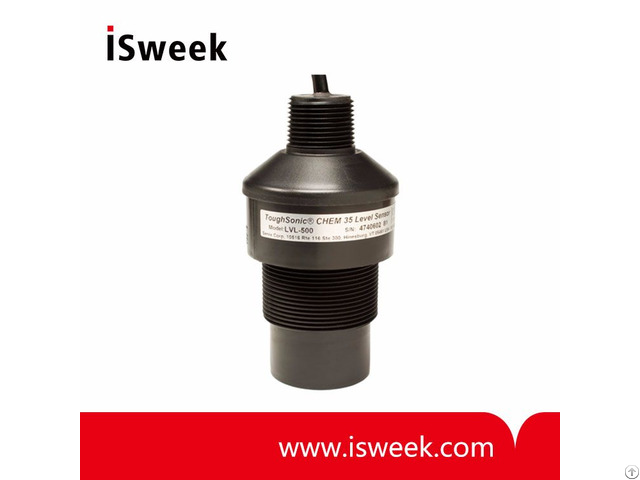

ToughSonic CHEM 35 Level Sensor

Liquids or Solids in Chemically Aggressive Environments

/

CHEM series sensors and SenixVIEW software put the power of ultrasonics in your hands.

You can quickly adjust, optimize, save and clone your applications quickly without calibration!

/

These sensors are housed in a rugged, chemically inert PVDF sealed housing for long life.

They mount above the material surface and measure distance downward without contact.

Outputs respond to that measured distance.

/

Applications include pump control, bulk inventory, batch pro- cessing, water management and high/low level alarms.

/

Non-Contact Ultrasonic Distance & Level Measurement

/

LVL-500 Series Chemically Resistant Ultrasonic Level Sensor Specifications

• Optimum Range: 25 ft.

(7.6 m) • Max Range: 35 feet (10.7 m) • Deadband: Typ.

< 12 in.

(30.5 cm) • Temperature: -40 to 158 ℉ (-40 to 70℃) • Outputs: Five selectable, plus serial data • Humidity: 0 to 100% operating • Long or short measurements • Unaffected by optical factors like color and transparency • Durable housing for long life • Adjustable sensitivity

/

LVL-500 Series Chemically Resistant

Ultrasonic Level Sensor Part Numbers

LVL-500-232: Serial RS-232 interface (PC COM port compatible)

LVL-500-485: Serial RS-485 interface (allows addressable multi-sensor networks)
