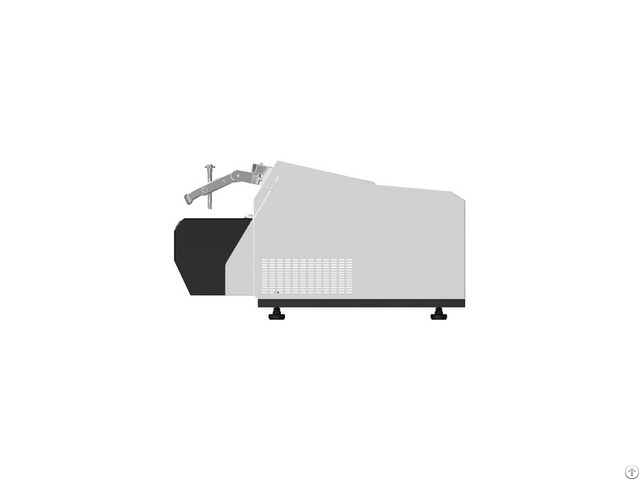

M4000 Benchtop AES Optical Emission Spectrometer

M4000 Benchtop AES Optical Emission Spectrometer creatively combined with world leading argon circulation technology enables the analysis of Fe, Al, Cu and other bases materials.

aes spectrometer (benchtop spectrometer, optical spectrometers) is an ideal solution to fast and accurate quantitative analysis near the furnace, metal material quality control and scientific research.

Stationary Metal Analyzers Optical System

Paschen-Runge optical system

Mult-CCD detectors with high resolution

Wavelength range: 175-520nm

Optics sealed argon circulation system

Spark Stand

Open sample clamp

Easily operated sample clamp adapted to different sample geometrics

Optimized argon circuit design

Easy to clean and maintenance

Excitation Source

Programmable pulse digital source

Maximum discharge frequency: 1000 Hz

Maximum discharge current: 400 A

Spark ignition pulse：1-14kV

Spark excitation pulse：20-230V

Arc excitation pulse：20-60V

Excitation Hole: 13mm

Argon Requirement

Purity requirement：99.999%

Input pressure：0.5MPa

Max 3.5L/min in sparking

Average standby flow: 1L/min

Electrical and Environmental Requirement

AC220V±20V, 50Hz

Max 400VA in sparking

Average standby power 50VA

Room temperature: 10℃～30℃

Storage temperature：0℃～45â„ ƒ

Relative humidity: 20%～80%

M4000 Metal Analyzer Model

Model Wavelength Description

M4000 N 175-520 nm Available for bases such as Fe, Al, Cu

M4000 S 200-520 nm Available for bases of Al, Cu
