M4000 Ccd Spark Optical Emission Spectromter - China

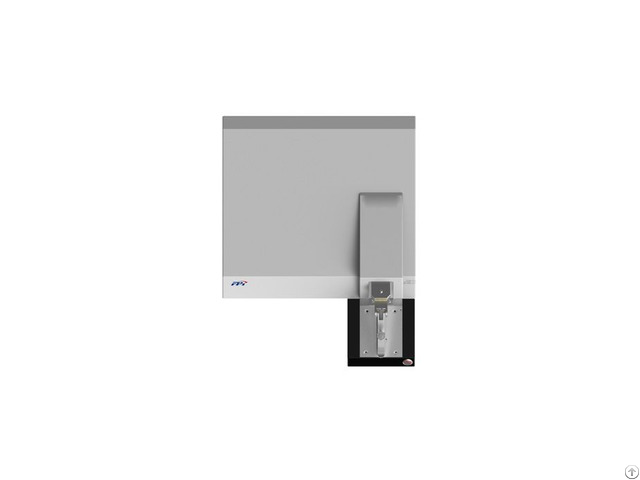

M4000 CCD Spark Optical Emission Spectromter

M4000 CCD Spark Optical Emission Spectromter creatively combined with world leading argon circulation technology enables the analysis of Fe, Al, Cu and other bases materials.

CCD spectrometer is an ideal solution to fast and accurate quantitative analysis near the furnace, metal material quality control and scientific research.

M4000 Metal Analyzer Optical System

Paschen-Runge optical system

Mult-CCD detectors with high resolution

Wavelength range: 175-520nm

Optics sealed argon circulation system

Spark Stand

Open sample clamp

Easily operated sample clamp adapted to different sample geometrics

Optimized argon circuit design

Easy to clean and maintenance

Argon Requirement

Purity requirement：99.999%

Input pressure：0.5MPa

Max 3.5L/min in sparking

Average standby flow: 1L/min AC220V±20V, 50Hz

Max 400VA in sparking

Average standby power 50VA

Room temperature: 10℃～30℃

Storage temperature：0℃～45â„ ƒ

Relative humidity: 20%～80%M4000

optical emission spectrometer, ccd spectrometer, optical emission spectrum Manufacturer

Electrical and Environmental Requirement

optical emission spectrum Model

Model Wavelength Description

M4000 N 175-520 nm Available for bases such as Fe, Al, Cu

M4000 S 200-520 nm Available for bases of Al, Cu

Company Contact:

• Posted By: Focused Photonics (Beijing), Inc. Co., Ltd

• Phone: 861063706569

• Address: Building 12-25,ABP.No.188,Western Road,South 4th Ring Road,Fentai District, Beijing, China, Beijing , Beijing , China

• Email:

• Business Description: Focused Photonics Inc.

  (FPI) is a high-tech enterprise established in 2002 by Mr.

  Wang Jian, PhD of Stanford University and Mr.

  Max Yao, MBA of UC Berkley.

  FPI is located in Hangzhou high-tech district, Zhejiang province with more than 2000 staff.

  FPI is dedicated to the R&D of photoelectric measurement technology, processes analysis technology and laboratory analysis technology.

  Its products are well known in China and distributed worldwide.

  In the past ten years, FPI has become leading scientific instrument suppliers in China and completed IPO in April, 2011 in Shenzhen Stock Exchange.

  Metal Analysis Division of FPI involves in R&D, sale, service of the Metal Analyser, Stationary Metal Analyzers, ICP OES Spectrometers.

  The predecessor of M.A.D is Michem Technology Ltd , which was founded in 1995 and joined FPI in 2007, .

  Michem is a leading supplier in analytical equipments for metal industry in China, especially for metals analyzer.

  MICHEM has cooperated with the world famous analytical instrument company over15 years.

  Up to June 2013, MICHEM has installed over 10000 units metal analyzer in China.

  M5000 Spark OES spectrometer, the first CCD Technology Spectrometer in China has been a good choice for in domestic and abroad customer and exported to Korea, Russia, Iran, Vietnam, Indonesia, Taiwan, Thailand, Egypt, Algeria and etc
