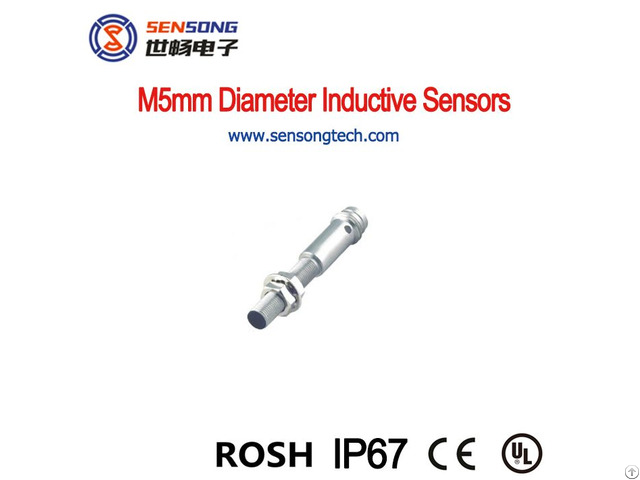

M5 Inductive Sensor With Diameter Stainless Steel Body Flush - China

Product Description

M5 Inductive Sensor with diameter Stainless Steel Body Flush M5 Inductive Sensor, also m5 inductive proximity sensor, m5 inductive switch, m5 inductive proximity switch, inductance sensor, inductance switch, Inductive proximity sensor, inductive proximity switch, is based on Faraday's law of induction and is one type of proximity sensor/switch.

An inductive sensor to detects metallic objects without requiring physical contact with the targets to be sensed.

SENSONG offers a broad range of robust inductive sensors to suit a wide variety of industrial applications.

It incluses NPN and PNP two output and NO / NC two output function with 10-30VDC operating voltage and also 2m PVC cable version, 3 Pins M8 Connector version and 3 Pins M8 Connector Pigtail version three types.

Diameter M5mm Switching Distance 0.8mm / 1.0mm /1.5mm(Flush) Housing Material Sainless steel With LED Yes Operating Voltage 10-30VDC Ripple <10% No Load Current <10mA Max.

Load Current 200mA Leakge Current <0.01mA Voltage Drop <1.5V Switching Frequency 2KHZ Response Time 0.1ms Switching Hysteresis <15%(Sr) Repeat Accuracy <1.0%(Sr) Protection Category IP67 Operating Temperature -25℃-+70℃ Temperature Drift <10%(Sr) Short circuit protection Yes Reverse polarity protection Yes Overload Trip Point 220mA Certifications CE, ROHS, UL Connection 2m Cable, 3 Pin M8 Pigtail, 3 Pin M8 Connector

Packaging & Shipping

Package: 100pcs/CTN

Gross weight: 10kgs/CTN

Volume: 0.027CBM/CTN

Delivery Detail: Shipped in 15 days after payment Our Services

1 - Delivery: A.

Fast Delivery: 3 to 5 days.

B.

Cheap Delivery: 15 to 25 days.

2 - Modes of Transportation: UPS/DHL/FEDEX/TNT/EMS/Ara mex, Door To Door, Door To Airport.

3 - Refound/warranty Policy We ensure free replacement after receiving your notice 5 days and SENSONG item No., photos and invoice.

4 - Payment Terms: T/T, Paypal, Western Union, L/C FAQ

What is our MOQ? Sample: 1pcs (charged) Order: 100 pcs OEM item: Depends on your Qty.

How to purchase our products? Step-1, Please tell us the model No.

you are interested in, Quantity, sensing distance, out put function and other specification Step-2, Please tell us your installation environment, working temperature, we could recommend the most suitable products.

Step-3, Proforma Invoice with order details as your requested will be sent to your mailbox, goods will be delivered upon receipt of your full payment and shipping instruction
