M5000 Alloy Analyzer for Positive Material Identification

Stationary Metal Analyzers Introduction

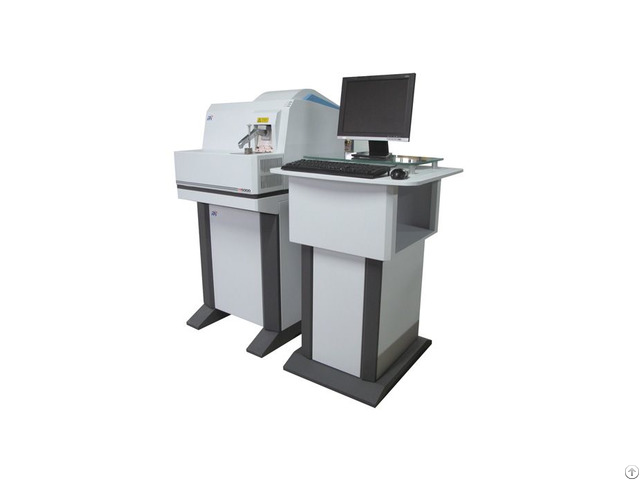

M5000 Alloy Analyzer for Positive Material Identification is a compact desktop spectrometer for metal analysis based on CCD technology.

Pmi analyzer design combines high performance with rugged construction and operational convenience with reliable operation.

The programmable digital spark source, optimized optical system, auto spectrum correction, digital controlled and data capturing and durable spark stand enable you to obtain fast, reliable and accurate result for metal analysis, metal verification.

M5000 Alloy Analyzer has established itself well in China market and keeps offering high performance with minimal operating costs.

It covers the wavelength range 140nm～680nm, permitting the metal analysis of all elements required by the metals industry.

Pre-defined calibrations are set up in factory and can be adjusted to fit special analyzing requirements.

M5000 is built under strict manufacturing and quality control procedures with ISO 9001 - M5000 Metal alloy analyzer Model

Model Wavelength Description

M5000 F 140-680 nm Optimizd performance for C, P, S and N analysis。 Available for bases such as Fe, Al, Cu, Zn, Ni, Ti, Mg and Co.

M5000 N 170-680 nm Optimizd performance for C, P, S.

Available for bases such as Fe, Al, Cu, Zn, Ni, Ti, Mg and Co.

M5000 S 200-680 nm Available for bases of Al, Mg, Cu, Zn, Ni, Ti.

Technical parameters

Metal Analyser Base

Available for the relevant bases such as Fe, Al, Cu, Zn, Ni, Ti, Mg and Co.

Optical System

Paschen-Runge optical system with full wavelength coverage Effective wavelength range140nm-680nm Multi-CCD detectors with high resolution Dual optical system design, optional UV optics

Calibration Standard factory calibrated programs Freely selected analysis programs Customized calibrated programs according to individual requirements

Spark Stand Argon flushed and optimized Argon flow Easily operated sample clamp adapted to different sample geometrics Durable electrode and easy maintenance Excitation hole 13mm

Readout System High performance DSP and ARM processor with super high speed External PC optional Ethernet data transmission

Excitation Source Programmable pulse digital source Optimized electronics and complete excitation protection Available spark, arc and combined discharge waveform for different bases High-energy pre-spark Frequency: 100Hz～1000Hz Maximum discharge current: 400 A

Software Easy used and graphic interface based on Windows Automatic diagnosis system Database management Microsoft Windows operating system

Electrical and Environmental Requirement AC220V±20V, 50Hz Max 400VA in sparking Average standby power 100VA Room temperature: 10℃～30℃ Relative humidity: 20%～80%

Dimension L x W x H: 726 x 622 x 546 mm Net weight: 80kg

Supply Pmi Analyzer, Metal Verification, Positive Material Identification China

M5000 metal alloy analyzer has established itself well in China market and keeps offering high performance with minimal operating costs.

It covers the wavelength range 140nm～680nm, permitting the analysis of all elements required by the metals industry.

Pre-defined calibrations are set up in factory and can be adjusted to fit special analyzing requirements.

M5000 is built under strict manufacturing and quality control procedures with ISO 9001.
