Magnetic Surface Mounted Buzzer Speaker Alarm Audio Transducer Klj 8540 5027 - China

price: 0.31 Dollar US$

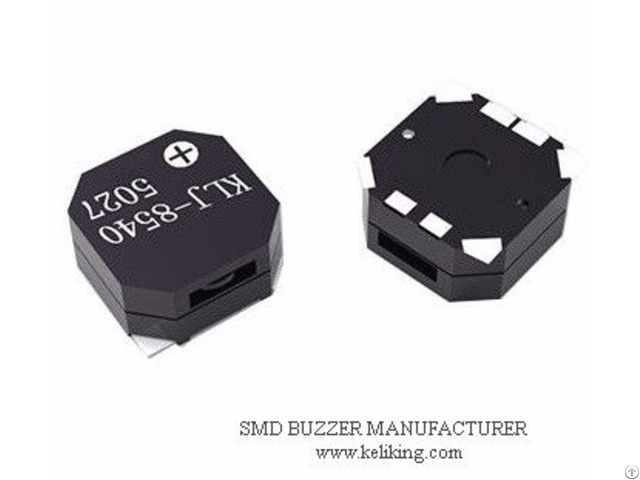

Magnetic Surface Mounted Buzzer Speaker Alarm Audio Transducer Klj 8540 5027

Products Photos Catalog Magnetic Surface Photos Catalog

Specification of SMD Magnetic Buzzer KLJ-8540-5027 Operating Voltage(Vp-p) 4.5-6.5

Rated Voltage(Vp-p) 5.0

Current Consumption(mA/max) 90 at Rated Voltage

Sound Pressure Level(dB/min) 86 at 10cm at Rated Voltage

Coil Resistance(Ω) 31±4 Environment Compulsory Standard ROHS

PS: Vp-p=1/2duty, square wave Application Range Audible distance at rated vol.

10m

Application Smart electronic devices, hand-held electronic devices, smart home controller, smart electronic teacups, coffee machine, air monitor, law enforcement devices, blue screen mobile phone POS machine, burglar alarm, scanner, ordering meal devices artificial intelligence devices and more


Company Contact:


  • Phone: +86 13861009344

  • Address: No. 1-1, Dongtang Road, Sanhekou, Zhenglu, Changzhou, Changzhou , Jiangsu , China

  • Email: Email


Published date: August 7, 2017

  • Business Description: Changzhou Keliking Electronics Co., Ltd. is the full set solution supplier for micro SMT buzzer.

    Included electromagnetic buzzer and piezo buzzer.

Related listings



  • Ultralthin Magnetic Buzzer Audio Transducer 3 6v Klj 8540 3627
    Ultralthin Magnetic Buzzer Audio Transducer 3 6v Klj 8540 3627
    Electrical equipment and components - Changzhou Keliking Electronics Co.,Ltd - China - August 7, 2017 - 0.31 Dollar US$

    Parameters of KLJ-8540-3627 Operating Voltage(Vp-p) 2.5-4.5 Rated Voltage(Vp-p) 3.6 Current Consumption(mA/max) 90 at Rated Voltage Sound Pressure Level(dB/min) 86 at 10cm at Rated Voltage Coil Resistance(Ω) 16±3 Environment Compulsory Standard ROHS ...

  • Small Custom Made Magnetic Buzzer Audio Transducer Klj 8530 5027
    Small Custom Made Magnetic Buzzer Audio Transducer Klj 8530 5027
    Electrical equipment and components - Changzhou Keliking Electronics Co.,Ltd - China - August 7, 2017 - 0.28 Dollar US$

    Specification of KLJ-8530-5027 Operating Voltage(Vp-p) 4.5-6.5 Rated Voltage(Vp-p) 5.0 Current Consumption(mA/max) 90 at Rated Voltage Sound Pressure Level(dB/min) 86 at 10cm at Rated Voltage Coil Resistance(Ω) 30±4 Operating Temperature(℃) -20~ +85 ...

  • Black Passive Treble Electromagnetic Smd Buzzer Klj 8530 3627
    Black Passive Treble Electromagnetic Smd Buzzer Klj 8530 3627
    Electrical equipment and components - Changzhou Keliking Electronics Co.,Ltd - China - August 7, 2017 - 0.28 Dollar US$

    Parameters of KLJ-8530-3627 Oscillation Frequency(Hz) 2731 Operating Voltage(Vp-p) 2.5-4.5 Rated Voltage(Vp-p) 3.6 Current Consumption(mA/max) 90 at Rated Voltage Sound Pressure Level(dB/min) 86 at 10cm at Rated Voltage Coil Resistance(Ω) 16±3 Enviro...
