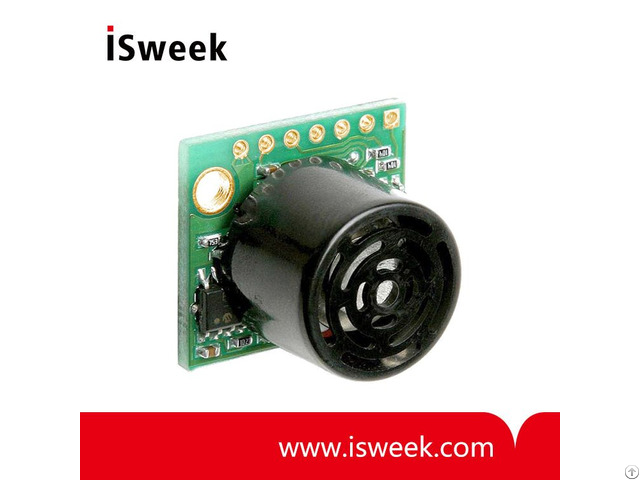

MB1010 LV-MaxSonar-EZ1

High Performance Ultrasonic Rangefinder

/

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Product Description

The LV‑MaxSonar‑EZ1 is a great choice for use where sensitivity is needed along with side object rejection.

The LV-MaxSonar-EZ1 is our most popular indoor ultrasonic sensor and is a great low-cost general-purpose sensor for a customer not sure of which LV-MaxSonar-EZ sensor to use.

/

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Product Specifications

• Resolution of 1 inch

• 20Hz reading rate

• 42kHz Ultrasonic sensor measures distance to objects

• RoHS Compliant

• Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width

• Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches

• Maximum Range of 254 inches (645 cm)

• Operates from 2.5-5.5V

• Low 2.0mA average current requirement

• Small, light weight module

• Designed for easy integration into your project or product

• Widest beam of the LV-MaxSonar-EZ sensors

• Our most popular indoor ultrasonic rangefinder

• Our low cost, all-around sensor that is excellent for many projects

• Best beam and sensitivity balance for the LV-MaxSonar-EZ sensors

/

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Features and Benefits

• Most popular ultrasonic sensor

• Low power consumption

• Easy to use interface

• Can detect people to 8 feet

• Great balance between sensitivity and object rejection

• Can be powered by many different types of power sources

/

MB1010 LV-MaxSonar-EZ1 Ultrasonic Rangefinder Applications and Uses

• Great for people detection

• Security

• Motion detection

• Used with battery power

• Autonomous navigation

• Educational and hobby robotics

• Collision avoidance
