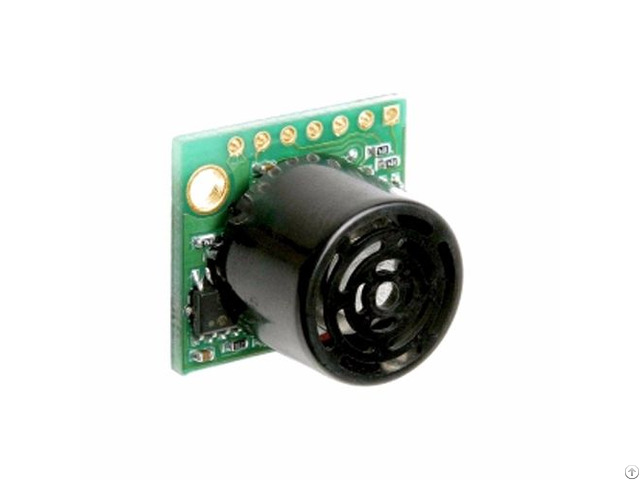

Mb1024 High Performance Ultrasonic Sensors - China

MB1024

LV-ProxSonar-EZ2

High Performance Ultrasonic Rangefinder

/

MB1024 High Performance Ultrasonic Sensor Product Description

These ultrasonic proximity sensors detect objects in a calibrated detection zone.

The LV‑ProxSonar‑EZ sensors report when an object (such as a person) enters the detection zone.

The target is released after leaving the LV‑ProxSonar‑EZ detection zone.

/

The LV-ProxSonar-EZ2 has a detection zone of ~3 feet and will allow for 10+ simultaneous sensors.

/

MB1024 High Performance Ultrasonic Sensor Product Specifications ● Resolution of 1 inch ● ~2.5 second target acquire time* ● ~1.5 second target release time* ● Automatic multi-sensor operation ● People sensor ● Maximum reported range of 254 inches (645 cm) ● ~3 foot proximity detection zone (36 inches or 91 cm) ● Run up to 10+ sensors in the same environment ● Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial ● 42kHz Ultrasonic sensor measures distance to objects ● RoHS Compliant ● Read from sensor outputs: Serial and Pulse Width ● Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches ● Operates from 2.5-5.5V ● Low 2.0mA average current requirement ● Small, light weight module ● Designed for easy integration into your project or product ● 3 foot detection zone

*Custom times available for a nominal NRE fee
