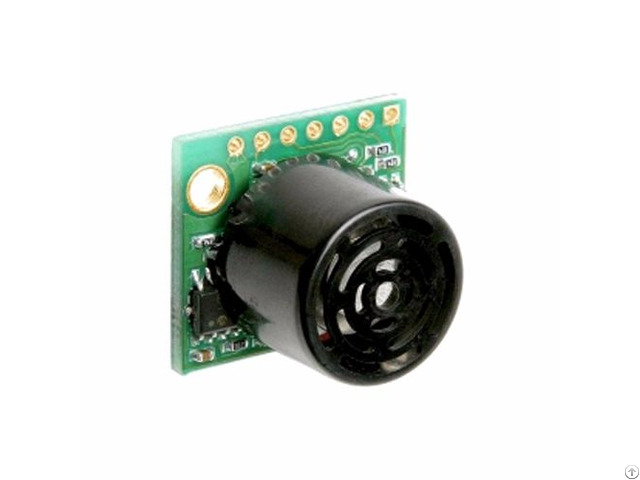

Mb1040 Lv Maxsonar Ez4 High Performance Ultrasonic Sensor - China

MB1040

LV-MaxSonar-EZ4

High Performance Ultrasonic Rangefinder /

Product Description

The LV-MaxSonar-EZ4 is the narrowest beam width sensor that is also the least sensitive to side objects offered in the LV-MaxSonar-EZ sensor line.

The LV-MaxSonar-EZ4 is an excellent choice when only larger objects need to be detected.

/

MB1040 Features and Benefits ● Best side object rejection in the LV-MaxSonar-EZ sensor line ● Low power consumption ● Easy to use interface ● Best for large object detection ● Can be powered by many different types of power sources ● Can detect people up to approximately 4 feet /

MB1040 Applications and Uses ● Landing flying objects ● Used with battery power ● Autonomous navigation ● Educational and hobby robotics ● Collision avoidance /

Product Specifications ● Resolution of 1 inch ● 20Hz reading rate ● 42kHz Ultrasonic sensor measures distance to objects ● RoHS Compliant ● Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width ● Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches ● Maximum Range of 254 inches (645 cm) ● Operates from 2.5-5.5V ● Low 2.0mA average current requirement ● Small, light weight module ● Designed for easy integration into your project or product ● Narrowest beam of the LV-MaxSonar-EZ sensors ● Best for large object detection applications
