Mb1240 Xl Maxsonar Ez4 High Performance Ultrasonic Rangefinder - China

price: check with company for price

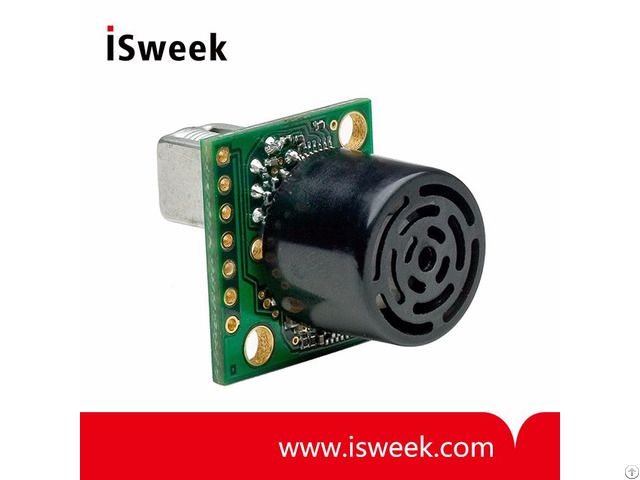

Mb1240 Xl Maxsonar Ez4 High Performance Ultrasonic Rangefinder

Products Photos Catalog Mb1240 Maxsonar Ez4 Photos Catalog

MB1240 XL-MaxSonar-EZ4

High Performance Ultrasonic Rangefinder

/

MB1240 XL-MaxSonar-EZ4 Ultrasonic Rangefinder Product Description

The XL-MaxSonar-EZ4 has the highest noise tolerance and narrowest beam of any of our indoor sensors.

The sensor is designed and calibrated to provide reliable range information to large targets even in environments with strong acoustic or electrical noise sources.

/

MB1240 XL-MaxSonar-EZ4 Ultrasonic Rangefinder Product Specifications

• Resolution of 1 cm

• 10Hz reading rate

• 42kHz Ultrasonic sensor measures distance to objects

• RoHS Compliant

• Read from all 3 sensor outputs: Analog Voltage, RS232 Serial, Pulse Width

• Virtually no dead zone, objects closer than 20 cm range as 20 cm

• Operates from 3.3-5.5V

• Low 3.4mA average current requirement

• Maximum range of 765 cm (300 inches)

• Hardware gain of 250

/

MB1240 XL-MaxSonar-EZ4 Ultrasonic Rangefinder Features and Benefits

• Narrowest beam in the XL-MaxSonar-EZ/AE sensor line

• Low power consumption

• Easy to use interface

• Large target detection

• Acoustic noise rejection

• 3.3v to 5.5v operational voltage

/

MB1240 XL-MaxSonar-EZ4 Ultrasonic Rangefinder Applications and Uses

• Great for people detection

• Security

• Motion detection

• Recommended for multi-copters and UAV's

• Used with battery power

• Autonomous navigation

• Educational and hobby robotics

• Collision avoidance
