Mb7583 Scxl Maxsonar Wrlst High Performance Ultrasonic Rangefinder - China
price: check with company for price

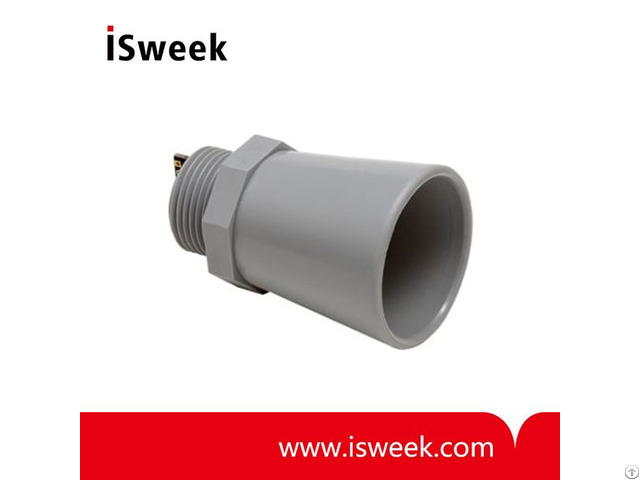

MB7583 SCXL-MaxSonar-WRLST
High Performance Ultrasonic Precision Rangefinder
/
MB7583 SCXL-MaxSonar-WRLST Ultrasonic Sensor Product Description
The weather resistant SCXL-MaxSonar-WR self-cleaning sensor is a rugged ultrasonic sensor component module.
This outdoor sensor provides very short to long distance detection and ranging in a compact, robust PVC housing.
The ultrasonic sensor meets the IP67 water intrusion standard and matches standard electrical 3/4‑inch PVC pipe fittings.
/
The MB7583 features a self-cleaning transducer to remove condensation and ice buildup when operating in cold conditions.
The sensor accurately applies temperature compensation to every reading, using either the integrated temperature sensor or the optional external temperature sensor (HR-MaxTemp).
/
The MB7563 SCXL-MaxSonar-WRLST self‑cleaning ultrasonic sensor features a maximum range of 10 meters to large targets.
The MB7583 is our most sensitive long-range sensor in the SCXL-MaxSonar-WR self‑cleaning sensor line.
/
High output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms results in virtually noise free distance readings.
This holds true even in the presence of many of the various acoustic or electrical noise sources.
The SCXL-MaxSonar-WR sensors are factory calibrated to match narrow sensor beam patterns and provide reliable long-range detection zones.
/
MB7563 is the RS232 version of this sensor.
/
Models with additional chemical resistance are available
The F-Option (IP-68) design modification provides our weather resistant sensors with extra protection against corrosive chemical environments.
Ask for the F-Option (IP-68) when ordering.
/
MB7583 SCXL-MaxSonar-WRLST Ultrasonic Sensor Product Specifications
• Resolution of 1-mm
• Self‑cleaning transducer
• 0.57Hz read rate
• 42kHz ultrasonic sensor measuresdistance to objects
• RoHS Compliant
• Operates from 2.7-5.5V
• Low 68mA average current requirement
• Maximum range of 10 meters (394 inches)
/
MB7583 SCXL-MaxSonar-WRLST Ultrasonic Sensor Features and Benefits
• Factory calibrated beam width
• Low operating voltages from 2.7V to 5.5V
• All range outputs are active simultaneously
• High acoustic sensitivity
/
MB7583 SCXL-MaxSonar-WRLST Ultrasonic Sensor Applications and Uses
• Autonomous Navigation
• Robot Ranging Sensor
• Bin Level Measurement
• Tank Level Measurement
• Grain Level Measurement
