Mcx Straight Female Plug Connector For Rg316 Rg174 Rf Cable Crimp And Solder - China

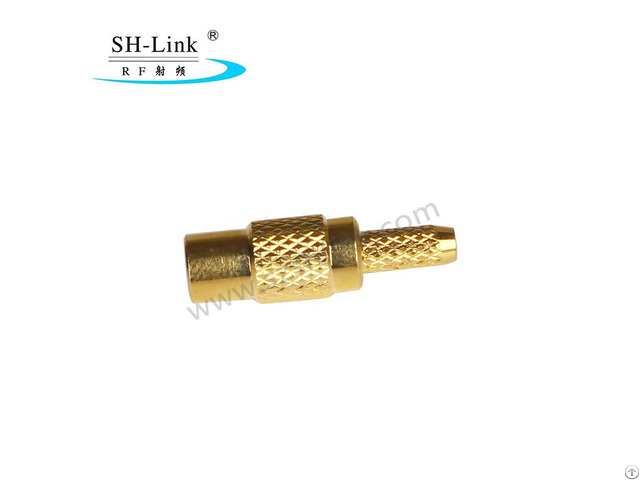

MCX straight Female plug connector for RG316 RG174 RF cable crimp & solder

TYPE MCX RF Coaxial Connector is a Kind of miniature Connectors with snap-on Coupling .

Characteristic impedance has two types: 50Ω and 75Ω.

The characteristic of connectors is in small volume, light weight, concise structure, easy to use.

MCX Connector are widely used in the Global Position System, Digital Personal Computer Network, all kinds of radio instruments, small-sized electronic equipments and WLAN system.

MAJOR TECHNICAL CHARACTERISTICS Temperature range -55—+155℃(PE Cable -40—+85℃)

Impedance 50Ω, 75Ω Frequency range DC-6GHz Working voltage 250V(50Ω) 170V(75Ω) at sea level

Withstanding voltage 250V(50Ω) 170V(75Ω) at sea level

Contact resistance Center contact ≤5mΩ Outer contact ≤2.5mΩ Insulation resistance ≥1000MΩ Center conductor retention force ≥0.28N Insertion loss 0.18dB/1GHz Engagement force ≤20N Disengagement force ≥8N Voltage Standing Wave Ratio Straight ≤1.20/1GHz Right angle ≤1.45/1GHz Durability(mating) ≥500(Cycles) Buy low price, high quality MCX Straight Female Plug Connector, RF MCX Male Plug Connector.

You can choose our products.

Our company is the leading factory.

Warmly welcome new and old customers to visit and patronize!
