Mdp200 Series Mems Differential Pressure Sensors - China

price: check with company for price

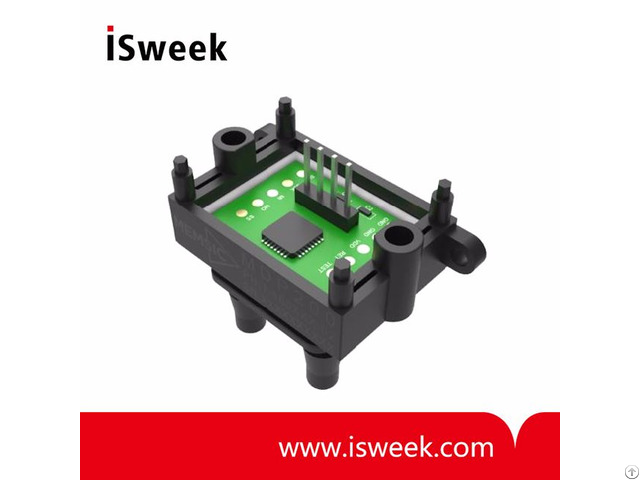

Mdp200 Series Mems Differential Pressure Sensors

Products Photos Catalog Mdp200 Mems Photos Catalog

MDP200 Series MEMS Differential Pressure Sensors General Description

MEMSIC's MDP200 series MEMS differential pressure sensors measure ultra-low gas pressures covering the range of up to ±500Pa (±2 inH2O).

The technology is based on MEMSIC's highly successful proprietary CMOS thermal accelerometers already sold in millions.

MEMSIC's thermal flow sensing element is monolithically integrated with CMOS signal processing circuitry and embedded software capable of converting gas flow rates to a digital format.

The signal is linearized and temperature compensated.

MDP200 series offers a wide dynamic range, superb long-term stability, and outstanding repeatability and hysteresis.

The MDP200 is also available as a low cost flow detector with an analog output and it can easily be configured to suit a variety of applications from burner control, HVAC, medical flow to industrial processing control.

MDP200 Series MEMS Differential Pressure Sensors Features

• Pressure range up to ±500Pa with high accuracy of ±3.0% m.v.

• Pressure based on thermal micro-flow measurement

• Outstanding hysteresis and repeatability

• Linearized and temperature compensated

• Digital I2C with 16bit resolution

• Cost Effective

• RoHS and REACH compliant

• Digital I2C Output

• Detects pressure difference as low as 0.02 Pascal MDP200 Series MEMS Differential Pressure Sensors Applications

• Medical CPAP and Ventilator

• HAVC and building control solution

• Burner Control

• Filter Monitoring
