Membrane Covered Optical Co2 Sensor For Aquaculture - China

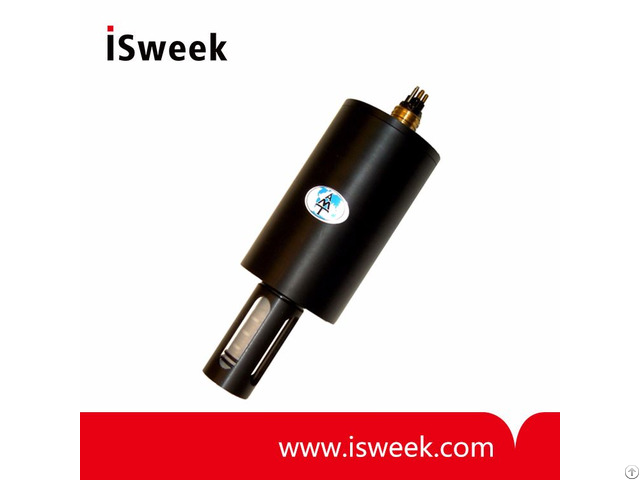

Membrane covered optical CO2 sensor for aquaculture

Online determination of the dissolved carbon dioxide in water

/

The measurement of the dissolved carbon dioxide gas (excluding HCO3 - and CO3 2- ) in the water in fish farms is one of the most important parameters for the success in aquaculture.

Until now the so called m-value method has been used, which has some disadvantages.

Apart from the very time-consuming manual analysis, the m-value method is not only influenced by CO2, but also by all the other compounds with influence to the pH-value (e.g.phosphates, silicates, hydrogen carbonate, carbonate).

Additionally, the m-value method requires sampling, which may lead to errors too.

On the other hand, a direct reading sensor is required to allow the control of the conditions in the water.

/

Main features of the Carbon Dioxide Sensor:

- submersible direct reading sensor for water and air

- detects only dissolved CO2 gas

- no signal interferences to silicate, phosphate, HCO3 - and CO3 2-

- built-in reference measurement for superior stability

/

Technical data of the membrane covered optical carbon dioxide sensor:

Carbon Dioxide:

• Measuring ranges: 3 mg/l, 5 mg/l, 8 mg/l, 12 mg/l, 30 mg/l, 50 mg/l, 80 mg/l, 170 mg/l, 340 mg/l

• Accuracy: ± [1.5% FS + 2% of reading]

• Temperature dependence of output: - 0.3% of the measuring per °C

• Pressure dependence: 0.15% of reading/hPa

• Longterm stability: < ± 5% FS/2 years

General:

• Dimensions: 240 mm length, 70 mm diameter

• Housing material: Nylon 6

• Connector: Subconn MCBH4M

• Power supply: 11-20 V DC or 18-30 V DC

• Power consumption: < 2.5 W

• Recommended external load: current output: max.

200 Ohm; voltage output: min.

1 kOhm

• Warm up time: < 15 minutes

• Max.

Depth: 3 m

• Available analog outputs: 0.20 mA, 4.20 mA, 0.1 V, 0.2 V, 0.2.5 V, 0.5 V

• Temperature range for storage and measurement: 0.30°C
