Metal Clad Medium Voltage Switchgear - China

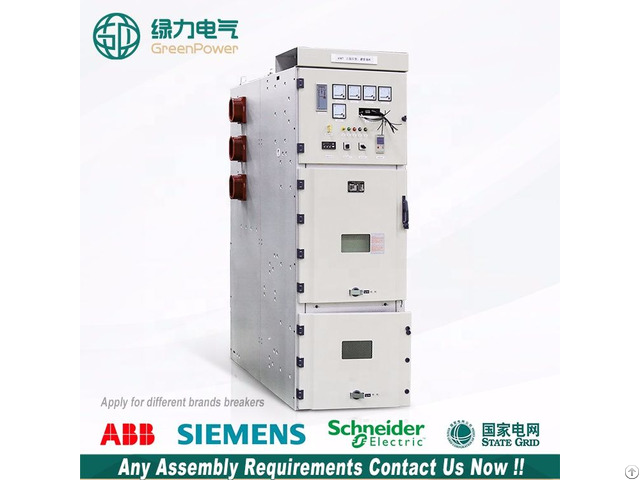

3.6kV 7.2kV 12kV KYN28A-12 Series 11kv 12KV VCB Switchgear Medium High Voltage Switchgear

General introduce

GPN1-12 Indoor AC High Voltage Embedded pole Vacuum Circuit Breaker is applied for indoor high voltage of rated voltage 40.5kV, three phase AC 50Hz.

It used for controlling and protection of transformer substation., mine firm and frequently applied to operate occasion.

The switchgear accords with the standards of IEC62271-100, IEC61439(idt GB/T 11022), GB 1984, DIN VDE 0670 and so on.

Main Features

1 - It is convenient for adjustment due to the vacuum circuit breaker adopt the design of arcing chamber is located on the upper, the operating mechanism is located on the down;

2 - It adopt the structure of combination of air and organic composite insulating material;

3 - Simple spring operating mechanism, 10000 operating times;

4 - Smooth and good self-locking performance due to lead-screw propulsion mechanism.

Suitable cabinet size:

Cabinet width 650/800/1000mm

VCB model: Suitable for ABB/Siemens, Schneider etc.

brands of VCB vacuum circuit breaker

Company Contact:

• Posted By: Zhejiang Greenpower I&E Co.,Ltd

• Phone: +8618989782765

• Address: #302, THIRD FLOOR, NO. 428 WENZHOU AVENUE, WENZHOU, ZHEJIANG, 325011, CHINA., Wenzhou , Zhejiang , China

• Email:

• Website: http://www.sinogp.net

• Business Description: Low voltage Switchgears, Medium voltage switchgears, Vacuum circuit breaker, SF6 circuit breakers, Air insulated switchgears, Gas insulated switchgear(CGIS), SF6 insulated switchgears, 40.5kV switchgear products, 24kV switchgear products, 10kV switchgear products, Low voltage withdrawable switchgears.

  All products with type tested and most products Intertek type test with ASTA certificate.

  please contact us now.
