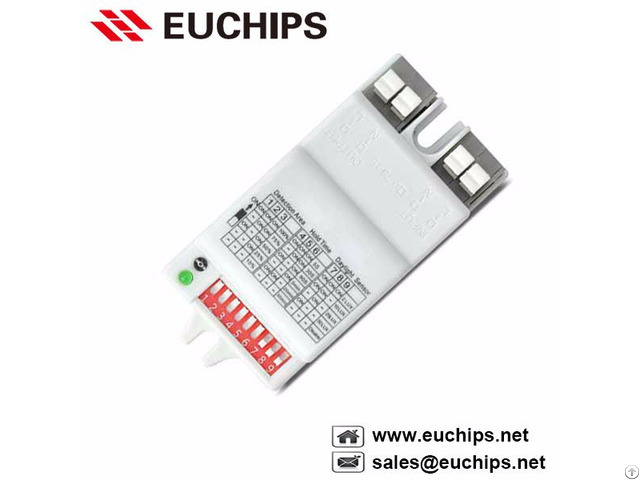

Microwave Motion Sensor Euc030s - China

EUC030S is an innovative and active motion detector with HF system 5.8GHz.

Motion can be detected through plastic, glass and thin non-metal materials.

The sensor supplies a simple energy-saving solution to use light only when and where you need it.

It automatically switches on/off light based on motion and ambient light level.

Can control all kinds of lamps, for example, halogen, fluorescent and LED lights.

Compact size and small casing, suitable to fix within most luminaries.

4-pole press-in terminal(L, N, N, L'), very easy to install.

The high quality relay is particularly suitable for commercial use with switching power up to 400W for LEDs and fluorescent lamps and up to 800W for incandescent lamps.

Feature

1 - Automatic switching based on motion and light level.

2 - Zero-crossing point operation helps protect the sensor against in-rush current.

3 - Super compact size makes it suitable to fix within most luminaries.

4.4-pole press-in terminal (L, N, N, L'), easy assembly.

5 - Detection area, time delay and daylight threshold can be precisely set via DIP switch.

6 - Wide detection area, range up to 12m in diameter.

Technical Parameter

Model: EUC030S

Operating voltage: 220~240Vac, 50Hz/60Hz

Rated load: 400W(inductive), 800W (resistive)

HF system: 5.8GHz±75MHz, ISM wave band

Transmitting power: <0.5mW

Power consumption: ≤0.5W(standby)

Detection zone: Max.

(D x H): 12m x 6m

Detection sensitivity: 10% / 25% / 50% / 75% / 100%

Hold time: 5s/30s/90s/3min/20min/30m in

Daylight sensor: 2lux/10lux /25lux/50lux/Disable

Mounting height: 6m Max.

Motion detection: 0.5~3m/s

Detection angle: 150°(wall installation), 360°(ceiling installation)

Operating temperature: -20℃~60℃

IP rating: IP20
