Mini Pci Express Socket Connector - Taiwan

price: contact company for price

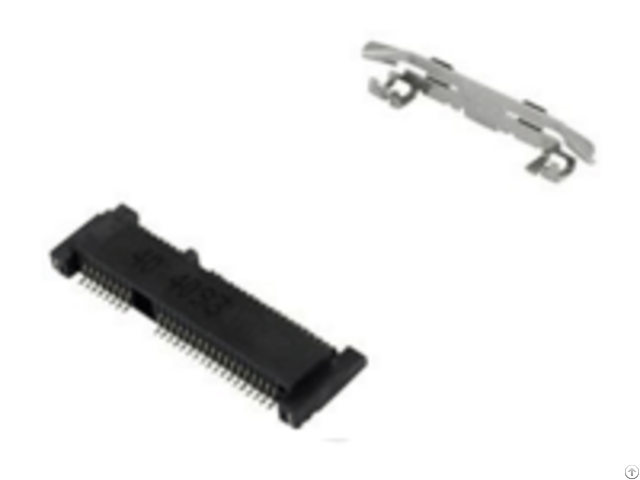

Mini Pci Express Socket Connector

Products Photos Catalog Mini Pci Express Photos Catalog

Top Mount, SMT Type

Stand off 4.0mm ELECTRICAL

* Current Rating: 0.5A per pin

* Voltage Rating: 50V DC

* Contact Resistance: 55mΩ max.

* Insulation Resistance: 500MΩ min.

* Dielectric Withstanding Voltage: 300VAC MECHANICAL

* Durability: 100 Cycle

* Insertion Force: 2.3Kgf max.

* Extraction Force: 2.3Kgf max.

ENVIRONMENTAL

* Operating temperature range: -40℃~+85℃

* Storage temperature range: -40℃~+85℃ SOLDER ABILITY

* Recommended IR Reflow Temperature: 260℃ 10Sec


Company Contact:


  • Phone: +886-2-8221-6389

  • Address: 7F-2, No.1213, Zhongzheng Rd., Zhonghe Dist.,, New Taipei City 235, Taiwan

  • Email: Email


Published date: August 16, 2019

  • Business Description: Connectec is well respected in the precision GPS industry, offering a complete line of GPS receivers and Bluetooth communication products.

    To fully support both domestic and international customers.

    Established in 2002 in Taiwan by a number of professionals and experts in Communications and GPS (Global Positioning System) industries.

    We focus and specialize in manufacturing small, lightweight and handy electronic products in applications of GPS and Bluetooth.

    Our aim is to enrich peoples life with more conveniences, styles, innovation, safety and enjoyment.

    Our products:

    GPS/GLONASS module, GPS Engine Board, NB-IoT Module, GSM/3G/4G Module, GPS / GSM Antenna, GPS Mouse ,GPS Devices, GPS Systems, GPS Receiver, car tracking, AVL, Security system, GPS/GNSS antenna, GSM/3G/4G antenna, wifi antenna, RF Cable, RF Connector, OEM/ODM
