Mining General High Voltage Switch Cabinet

Mainly used in the power supply system of central control room, the yard, the general ventilation and the main ventilation distribution chamber underground without gas and coal dust explosion, as distribution protection and control for mining electrical equipment of voltage 3.6 KV, 7.2 KV, or 12 KV AC 50 Hz, and also can be used to directly start or start the fan or water pump high voltage motors underground by the dry reactor.

The movable switch cabinet is also applicable in ground substation, metallurgy, chemical industry and power supply system of higher protection grade.

We design and build drawer type switch cabinet and intelligent low voltage switch cabinet are also an indispensable device in the mining process.

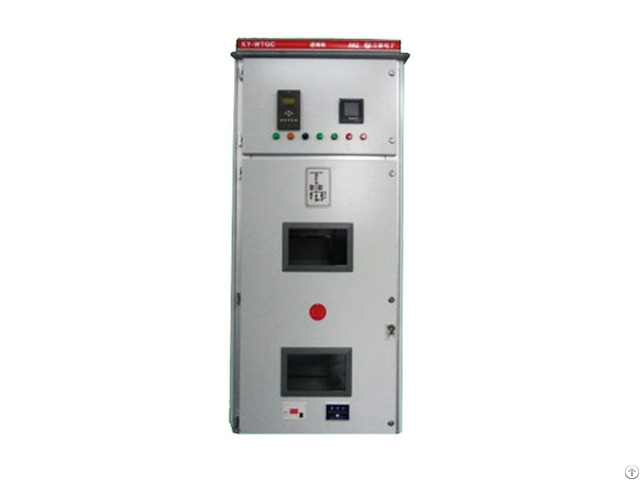

KY-WTGC-10 (6) mining general type high voltage switch cabinet(hereinafter referred to as the switch cabinet) is based on absorbing existing advanced technology, independently developed.

It has characters of new structure, convenient operation and maintenance, small volume, light weight, safe and reliable

• Structure features: the cabinet is composed of cabinet and handcart this two parts, separated into handcart chamber, busbar chamber, cable chamber, relay chamber by the partition board, handcart has two position of test and work, handcart chamber and cable chamber is separated by the movable insulation board, which is convenient and safe to maintain, it can reduce maintenance time, improve the quality of power supply.

Handcart slider is accurate and flexible to ensure the handcart does not deviate while move in and out
