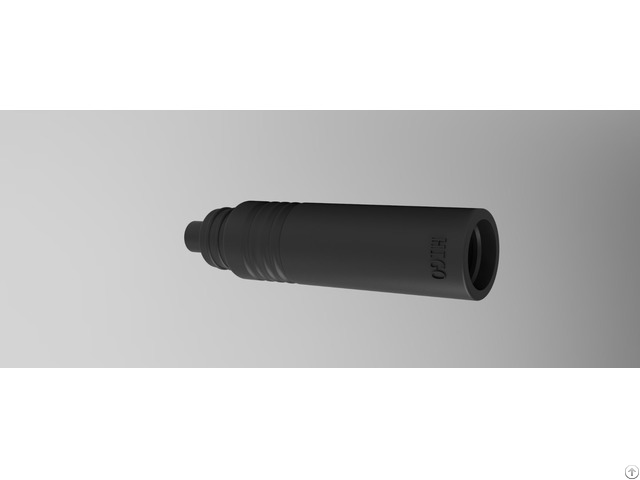

Motor Connector Hg F Z610b - China

price: contact company for price

MOTOR CONNECTOR HG-F-Z610B Electrical Characteristics

Rated Voltage

48V AC

Rated Current

20A/2A

Withstanding Voltage

700V

Insulation Resistance

≥20MΩ

Contact Resistance

≤10mΩ

Mechanical Characteristics

Mating Type

Insertion Force 100N Max, Extraction Force 50N Min

Mating Cycles

200Times

Performance

Operation Temperature

-25℃~+80℃

Protection Degree

IP66

Wires Specification

Max Outer Diameter

13mm

Mating Length

83mm

Contact Material

Copper alloy plated with gold which conforms to military standard

Wire Section

1.20mm²

Higo Waterproof Connector, Dustproof Signal Connector, Ebike Motor Connector Supplier


Company Contact:


  • Phone: 86 512 51918068

  • Address: No.17,Qingfang Road,Xinzhuang Town, Changshu , Jiangsu , China

  • Email: Email


Published date: October 26, 2018

  • Business Description: Shanghai Higo Electrical Equipment Co., Ltd. is a high-tech company committed to the design and manufacture of advanced electrical connectors, and provides solutions for connector and cable and electromechanical products.

    The company's products range, is widely used in mechanical and electrical equipment, transportation, energy exploration and production, aerospace, medical, nuclear technology, military and other professional applications; We can not only supply high-quality products comply with relevant standards, but also can provide customized service products of high quality and fast; all products are through relevant application certification, meet the requirements of environmental protection.

    The process of Higo is the process of serving customers and being successful with their customers! We are diligently and diligently doing everything, and we are full of confidence to meet every challenge.

    Higo can supply signal connector, motor connector and battery connector, etc.

    Our product's reliability is guaranteed and it can give you a good use experience.
