Motor Connector Hg F Z916 - China

price: contact company for price

Motor Connector Hg F Z916

Products Photos Catalog Motor Connector Z916 Photos Catalog

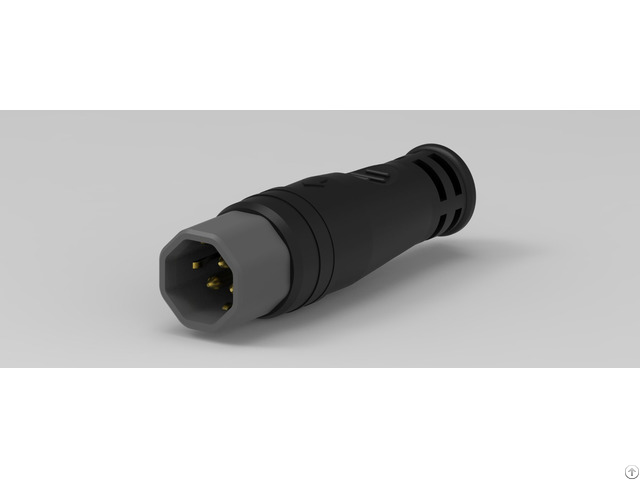

MOTOR CONNECTOR HG-F-Z916

Electrical Characteristics

Rated Voltage 48V AC/DC Rated Current 2A/20A Withstanding Voltage 700V Insulation Resistance ≥20MΩ Contact Resistance ≤10mΩ Mechanical Characteristics

Mating Type Insertion Force 100N Max, Extraction Force 30N Min Mating Cycles 200Times Performance

Operation Temperature -25℃~+80℃ Protection Degree IP66 Wires Specification

Max Outer Diameter Male 16.9mm, Female 19mm Mating Length 100mm Contact Material Copper alloy plated with gold which conforms to military standard Wire Section 0.20mm²+ 1.50mm² Higo Motor Connector, ROHS Motor Connector, REACH Splitter Connector Wholesaler

Higo export Ebike motor connector, environmental materials splitter connector, IP67 Industrial Waterproof Connector, Environmental Materials Motor Connector, REACH Motor Connector and REACH signal connector, etc.

Our products can be customized according to the customer's requirements.

Choose us, you can be get most careful and thoughtful service.


Company Contact:


  • Phone: 86 512 51918068

  • Address: No.17,Qingfang Road,Xinzhuang Town, Changshu , Jiangsu , China

  • Email: Email


Published date: October 26, 2018

  • Business Description: Shanghai Higo Electrical Equipment Co., Ltd. is a high-tech company committed to the design and manufacture of advanced electrical connectors, and provides solutions for connector and cable and electromechanical products.

    The company's products range, is widely used in mechanical and electrical equipment, transportation, energy exploration and production, aerospace, medical, nuclear technology, military and other professional applications; We can not only supply high-quality products comply with relevant standards, but also can provide customized service products of high quality and fast; all products are through relevant application certification, meet the requirements of environmental protection.

    The process of Higo is the process of serving customers and being successful with their customers! We are diligently and diligently doing everything, and we are full of confidence to meet every challenge.

    Higo can supply signal connector, motor connector and battery connector, etc.

    Our product's reliability is guaranteed and it can give you a good use experience.
