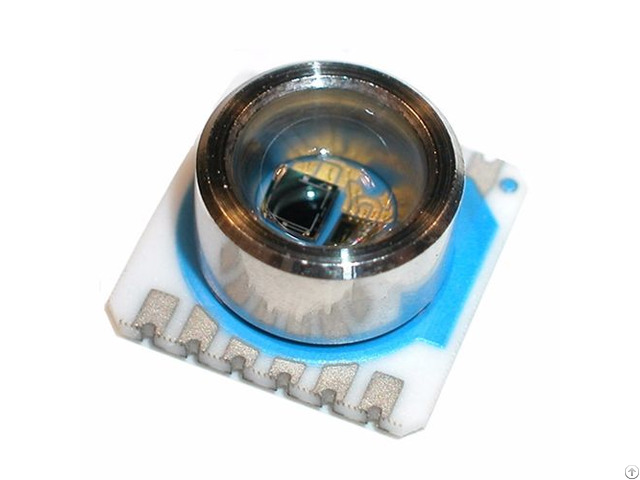

MS5534C Integrated Miniature Pressure Sensor SPECIFICATIONS

• 10 - 1100 mbar absolute pressure range

• 6 coefficients for software compensation stored on-chip

• Piezoresistive silicon micromachined sensor

• Integrated miniature pressure sensor 9 x 9 mm

• 16 Bit ADC

• 3-wire serial interface

• 1 system clock line (32.768 kHz)

• Low voltage and low power consumption

/

MS5534C Integrated Miniature Pressure Sensor Description: The MS5534C is a SMD-hybrid device including a piezoresistive pressure sensor and an ADC-Interface IC.

It provides a 16-bit data word from a pressure and temperature dependent voltage.

Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor.

MS5534C is a low power, low voltage device with automatic power down (ON/OFF) switching.

A 3-wire interface is used for all communications with a microcontroller.

/

The MS5534C is fully software compatible to the previous versions (MS5534A and MS5534B).

Compared to the previous versions, the ESD sensitivity level has been improved to 4kV on all pins.

/

MS5534C Integrated Miniature Pressure Sensor Features:

• Supply voltage 2.2 V to 3.6 V

• Low supply current

• -40°C to +125°C operation temperature

• No external components required

/

MS5534C Integrated Miniature Pressure Sensor Applications:

• Mobile altimeter/barometer systems

• Weather control systems

• Adventure or multi-mode watches

• GPS receivers
