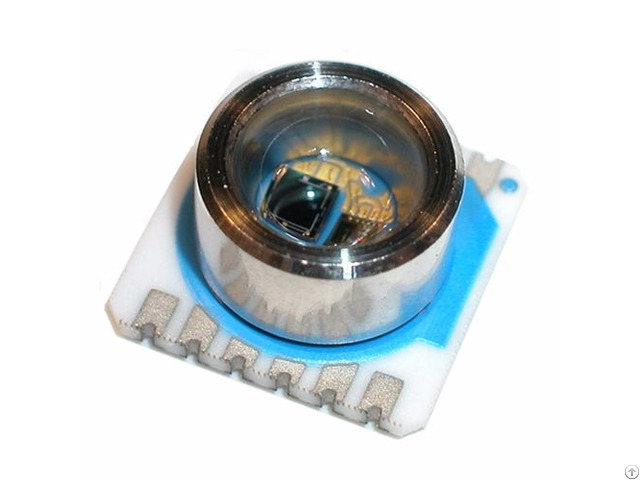

Ms5535 30c 30 Bar Pressure Sensor Module - China
price: check with company for price
MS5535-30C Pressure Sensor Module Specifications
• 0 30 bar absolute pressure range
• 6 coefficients for software compensation stored on-chip
• Piezoresistive silicon micromachined sensor
• Integrated miniature pressure sensor 9 x 9 mm
• 16 Bit ADC
• 3-wire serial interface
• 1 system clock line (32.768 kHz)
• Low voltage and low power consumption
/
MS5535-30C Pressure Sensor Module Description: The MS5535-30C is a high-pressure version of MS5535C pressure sensor module.
It contains a precision piezoresistive pressure sensor and an ADC-Interface IC.
It uses an antimagnetic polished stainless ring for sealing O-ring.
It provides a 16 Bit data word from a pressure and temperature dependent voltage.
Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor.
MS5535- 30C is a low power, low voltage device with automatic power down (ON/OFF) switching.
A 3-wire interface is used for all communications with a microcontroller.
/
MS5535-30C Pressure Sensor Module Features:
• Resolution 3.0 mBar
• Supply voltage 2.2V to 3.6V
• Low supply current < 5uA
• Standy current < 0.1µA
• -40°C to +125°C operation temperature
• 16 Bit ADC resolution pressure measurement and control systems
/
MS5535-30C Pressure Sensor Module Field of application:
• Mobile water depth measurement systems
• Diving computers and divers watches
Company Contact:
- Posted By: Shenzhen week Technology Ltd
- Phone: 86-0755-83289036
- Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China
- Email:
Published date: June 16, 2017
- Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.
We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
