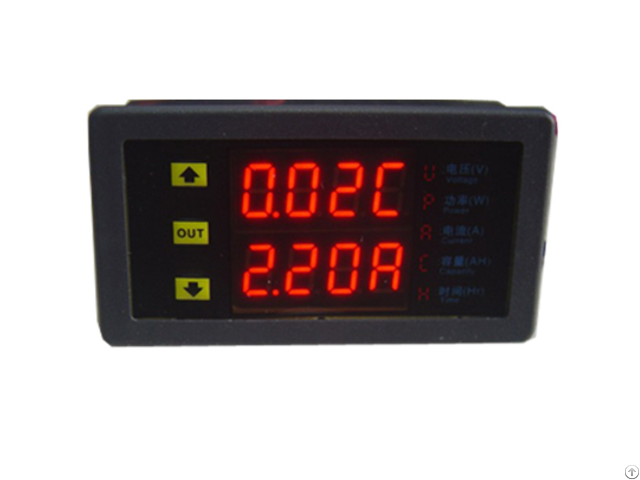

Mtx100 Battery Monitor Protector - China

Features

MTX120P

Wireless battery

status detect

·Large LCD display for different parameter, integrate voltage, current, power, charge

capacity and time.

·Bidirectional current detector suit for battery

test and other DC system.

Provide battery AH

volume counter.

·Inside RF communication chip for wireless

mode.

·Meter provide max 2600pcs meters in one

install position.

·Provide power off memory, display kit can

automatic saving measurement AH, Time, Watt

value when power off, (If need to power off

measurement kit need to press OK button for

manually save).

·Provide screen lock, time off, brightness

adjustment and change the language display

function.

·Provide over voltage(OVP), low voltage(LVP), over current(NCP/OCP), time delay(TDP)

protection functions.

Technical characteristics

10V~120VDC; two wire connection

0-400VDC; three wire connection

Current sampling 0~300A

Electrical parameters

Display type 40*28mm color LCD screen

Sampling rate 5 times per second

Accuracy Volt ± 1% + 2byte / Amp ± 2% + 5byte

Resolution (max) 0.01V, 0.001A, 0.001W, 0.001Ah, 0.01H

Voltage protect

(OVP/LVP)

0-300A

Current protection

(NCP/OCP)

0-400V

Time delay (TDP) 0~10sec

RS485 mode for configuration and work in interference

RF mode Standard working mode

RF channels 26 channels, each change 100 address

Range

10m for RF mode(without shield);

Max 1200m for RS485 mode

Operation Temperature -10~50

Storage Temperature -20~60

Operation Humidity 0~90RH

Display kit 79x43x25mm

Measurement kit 81x50x59mm

Mounting size 76.5mm×39.2mm
