Multiple Ports Metal Shielded Rj45 Connectors J0n 0012nl Tht Mount - China

J0N-0012NL Multiple Ports PoE RJ45 Connector With RoHS Certification J0N-0012NL details: 1 - RoHS COMPLIANT 2 - PLASTIC HOUSING : THERMOPLASTIC MATERIAL WITH FLAMMABILITY RATING UL 94V-0 OR BETTER 3 - CONTACTS PLATING: 50 MICROINCHES GOLD PLATING 4 - CONTACT BASE MATERIAL: PHOSPHOR BRONZE 5 - UNDER PLAATING : 30 - 50u INCHES NICKEL 6 - SOLDER TAIL PLATING: 200 - 500 UINCHES 100% TIN, MATTE FINISH 7 - METAL SHIELD: NICKEL PLATING ON COPPER ALLOY 8 - JACK CAVITY CONFORMS TO FCC PART 68 SUBPART F.

9 - PCB PLATING: HASL 10 - STORAGE TEMPERATURE: - 20 TO +125 11 - COMPLIANCE TO J - STD: A.

J - STD -002: SOLDERABILITY AT 245 DIP AND LOOK TEST B.

J - STD -020: LEVEL 1, NO MOISTURE SENSITIVE C.

J - STD -075: W2, 270 MAXIMUM THROUGH WAVE SOLDER ELECTRICAL CHARACTERISTICS AT 25 UNLESS OTHERWISE SPECIFIED MEETS IEEE 802.3 SPECIFICATION - - - - PARAMETER | SPECIFICATION | OPERATING TEMPERTURE | 0 - 70 | TURNS RATIO | 1 .

00 2% | POLARITY | PER SCHEMATIC | INSERTION LOSS | 100 KHz | -1.2 dB MAX | RETURN LOSS (Z OUT = 100 OHM 5%) | .

1-40 MHz | - 16 dB MIN | INDUCTANCE (OCL) (MEDIA SIDE, 0 TO +70) | 350 uH MIN(MEASURED AT 100 KHz, 100 mVRMS AND WITH 8 mA DC BIAS) | CROSSTALK, ADJACENT CHANNELS | 1 MHz | - 50 dB MIN | COMMON MODE REJECTION RATIO | 2 MHz | - 50 dB MIN | DC RESISTANCE 1/2WINDING | .

65 OHMS MAX | DC RESISTANCE IMBALANCE | .

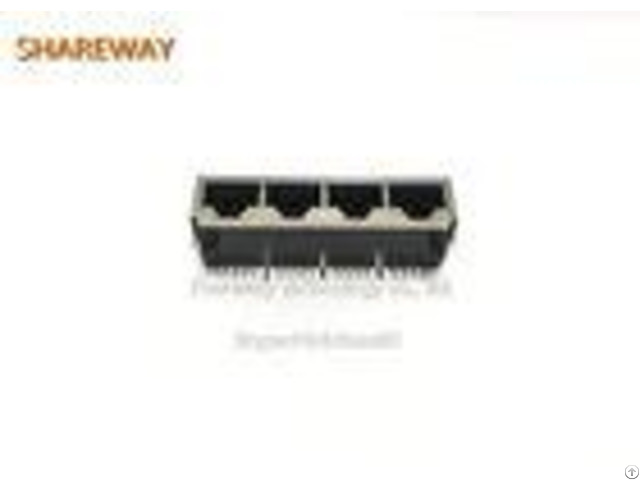

065 OHMS MAX ( CENTER TAP SYMMETRY ) | DC CURRENT RATING | 350 mA MAX | INPUT - OUTPUT ISOLATION | 2250 VDC FOR 60 SECONDS | - - - - J0N-0012NL Multiple Ports PoE RJ45 Connector With RoHS Certification PRODUCT PICTURE J0N-0012NL Multiple Ports PoE RJ45 Connector With RoHS Certification HOW TO ORDER 1 - Please send me your datasheet or part number you need.

2 - We will offer the replacement quotation for your reference 3 - The free samples are available for your approval.

4 - After sample testing, we will step into the mass order.

5 - The Proforma Invoice will send for your confirmation 6 - After the goods finished, we send the goods to you and tell you the tracking number.

7 - We will track your goods until you receive the goods.

Remarks: 1 - Sample orders are avaliable.

2 - Price is negotiable for orders of large quantity.

3 - Customized orders (OEM/ODM orders) are avaliable.

4 - Contact us for available flavors list.

International Certifications: 1 - ISO9001: 2008 2 - UL 3 - Reach 4 - RoHs Our service: 1 - 100% tested before shipping 2 - Have alternative for Halo, Pluse, Wurth, We-online, Chilisin, CoilcraftSame quality but better price 3 - Free sample available 4 - Provide new design for customer
