Ni Pxi 4071 Isolated Digital Instruments - China

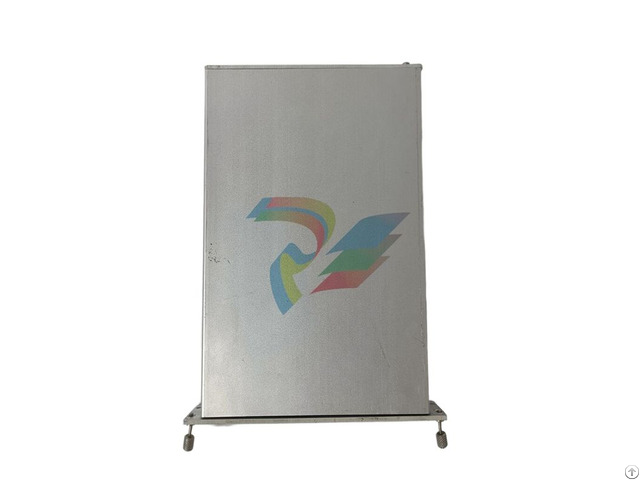

NI PXI-4071 Isolated digital instruments Product Overview The NI PXI-4071 is a module that integrates the functionality of two commonly used test instruments: a high-resolution digital multimeter, and a digitiser.

It is ideal for automated testing in production and R&D environments with its superior rate, accuracy, and functionality.

Measurement Functions Digital Multimeter Functions: Voltage measurement range: ±10nV to 1000V (700 VAC).

Current measurement range: ±1pA to 3A.

Resistance measurement range: 10μΩ to 5GΩ.

Also capable of frequency/period and diode measurements.

Digitiser function: Capable of capturing DC waveforms in all voltage and current modes at an acquisition rate of 1.8 MS/s in high voltage isolated digitiser mode.

With common mode isolation of ±500 VDC/Vrms and isolation up to 1000V, it provides an extremely high level of safety for measurements.

Product Advantages High Accuracy: As the industry's most accurate 7½-bit digital multimeter, the NI PXI-4071 provides extremely high measurement accuracy.

High-speed: In high-voltage isolated digitiser mode, it can acquire waveforms at a rate of up to 1.8 MS/s to meet the needs of high-speed measurements.

Multi-functionality: Integrates the functions of a digital multimeter and digitiser to meet the needs of different test scenarios.

Easy to integrate: It can be used with PXI switch to form a multi-channel high-voltage data acquisition system, which is convenient for users to build complex test systems.

Application Scenarios NI PXI-4071 is suitable for a variety of occasions that require high precision and high speed measurements, such as automated test systems, R&D and production environments.

Especially in the need for simultaneous measurement of a variety of parameters (such as voltage, current, resistance, etc.

), NI PXI-4071 can significantly improve test efficiency and accuracy.
