Ni Pxi 6602 Timer Module - China

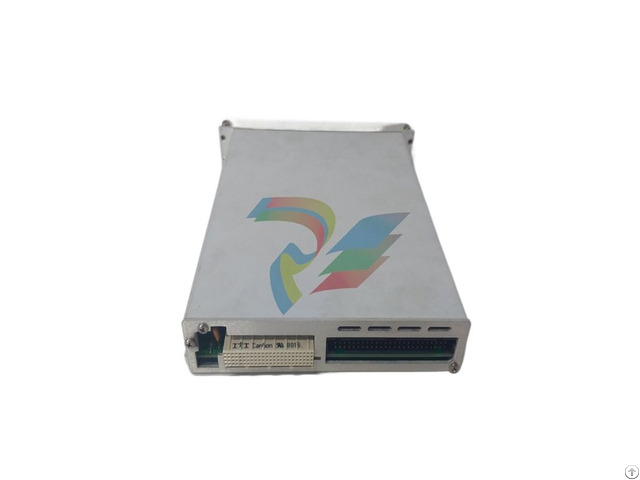

NI PXI-6602 Timer Module Product Overview The NI PXI-6602 module has eight 32-bit counters/timers and 32 TTL/CMOS-compatible digital I/O lines, eight of which are dedicated digital I/O lines and the remaining 24 are shared with the counters/timers.

This enables it to perform a wide range of counter/timer measurement tasks, such as encoder positioning measurement, event counting, cycle measurement, pulse width measurement, pulse generation, pulse sequence generation, and frequency measurement.

Key features Highly accurate counting and timing: Eight 32-bit counters/timers provide highly accurate time and counting values.

Maximum source frequency up to 80MHz (up to 125MHz with predefined scaling) to meet high-speed measurement needs.

Rich digital I/O functions: 32 digital I/O lines supporting TTL/CMOS levels for digital signal input and output.

8 dedicated digital I/O lines and 24 shared digital I/O lines provide flexible signal connection options.

High-speed DMA conversion capability: Supports 3 simultaneous high-speed DMA conversions to improve data transfer efficiency.

Digital De-Jitter Filter: Built-in digital de-jitter filter effectively filters out jitter and interference in the signal to improve measurement accuracy.

Compatibility and Expandability: Compatible with PXI and PXI Express systems, easy to integrate and expand with other PXI modules.

Supports operating systems such as Linux, Mac OS and Windows, providing extensive software support.

Application Areas NI PXI-6602 module is widely used in industrial automation, test and measurement, scientific research experiments and other fields.

In industrial automation, it can be used to monitor and control the operation status of equipment; in test and measurement, it can be used to accurately measure various physical quantities; in scientific research experiments, it can be used for tasks such as data acquisition and analysis.

Technical specifications (part) Counter/Timer: Quantity: 8 Number of bits: 32 bits Maximum source frequency: 80MHz (up to 125MHz using predefined scales) Digital I/O: Quantity: 32 Level: TTL/CMOS compatible Dedicated digital I/O lines: 8 Shared digital I/O lines: 24 DMA channels: Quantity: 3 Physical Specifications: Length: 16cm Width: 10cm
