No2 Ae High Concentration Nitrogen Dioxide Sensor - China

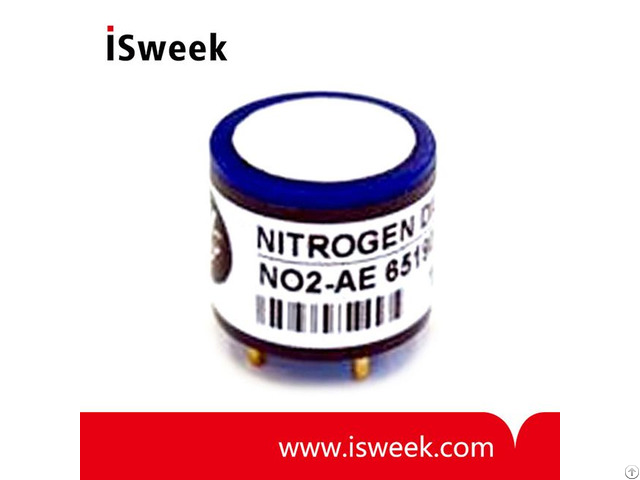

NO2-AE Nitrogen Dioxide Sensor (NO2 Sensor) Description

Alphasense Nitrogen Dioxide gas sensors operate using proven fuel cell technology.

/

NO2-AE Nitrogen Dioxide Sensor size:

20mm diameter, the industry standard size for portable gas detectors

/

The NO2 range provides OEMs with reliable sensors for use in a number of high volume applications.

Strong signal levels combined with low zero current allows resolution to 50 parts per billion (ppb) and an operating range to 20ppm.

The sensors are suitable for use in fixed installation sensing heads, portable safety instruments, urban air monitoring and stack gas analysers.

/

The NO2 sensors offer our electrolyte leak-free guarantee and reliable long-term detection performance.

The leakproof housing is moulded with a colour coded top for ease of identification.

/

NO2-AE Nitrogen Dioxide Sensor (NO2 Sensor) Specifications

• Range: 200 ppm limit of performance warranty

• Sensitivity: -100 to -170 nA/ppm @ 20℃ in 10ppm NO2

• Resolution: < 0.1 RMS noise (ppm equivalent) (33Ω)

• Response time t90: < 40 (s) from zero to 10ppm NO2

• Temperature range: -20 to 50°C

• Pressure range: 80 to 120 kPa

• Humidity range: 15 to 90% rh continuous

• Weight: < 6g

/

Matched Transmitter board for NO2-AE NO2 Sensor

4-20mA Digital Transmitter Board • Factory calibration, custom-set for immediate use • Digital zero, sensitivity and temperature compensation • Digital and 4-20mA output • Biased or unbiased operation • Calibration and range change
