Non Latching Signal Relay Ds2e M Dc12v - India

price: check with company for price

Non Latching Signal Relay Ds2e M Dc12v

Products Photos Catalog Latching Signal Relay Photos Catalog

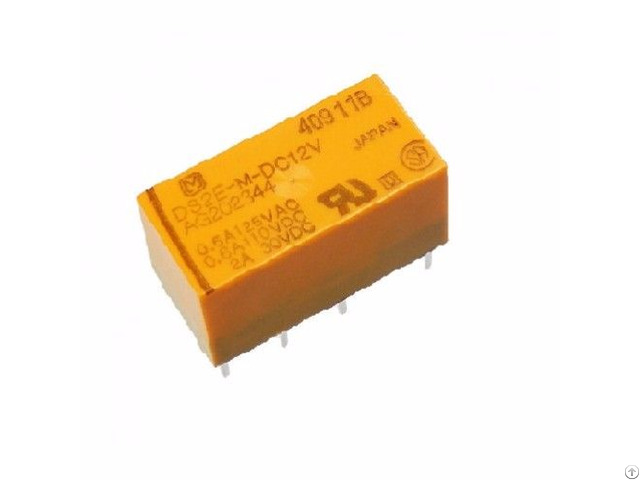

2A DPDT 12V Non Latching Signal Relay - DS2E-M-DC12V

FEATURES: -

1 - High sensitivity: 200 mW pick-up power 100 mW pick-up power types available

2 - Latching types available

3 - High switching capacity: 60 W, 125 V A

4 - High breakdown voltage: 1, 500 V FCC surge between open contacts 1, 000 V AC between open contacts

5 - DIP-1C type can be used with 14 pin IC socket 2C type can be used with 16 pin IC socket, 4C type can be used with 2 sets of 14 pin IC sockets

6 - Gold-cap silver palladium types available for 2 Form C type

7 - Bifurcated contacts are standard.

APPLICATIONS: -

1 - Telecommunication equipment

2 - Office equipment

5 - Computer peripherals

4 - Security equipment

6 - Measuring instrumentation

DESCRIPTION: -

Standard Package 50

Category Relays

Family Signal Relays, Up to 2 Amps

Series DS

Packaging Tray

Relay Type General Purpose

Coil Type Non Latching

Coil Current 33.3mA

Coil Voltage 12VDC

Contact Form DPDT (2 Form C)

Contact Rating (Current) 2A

Switching Voltage 250VAC, 220VDC - Max

Turn On Voltage (Max) 8.4 VDC

Turn Off Voltage (Min) 1.2 VDC

Operate Time 10ms

Release Time 5ms

Features Sealed - Amber

Mounting Type Through Hole

Termination Style PC Pin

Contact Material Silver (Ag), Gold (Au)

Coil Power 400 mW

Coil Resistance 360 Ohms

Operating Temperature -40°C ~ 70°C

POPULAR PRODUCTS: -POPULAR PRODUCTS: -

80A latching relays, 120A latching relays, 60A Latching relays, 90A latching relays, 16A latching relays, latching relay 12v, latching relay Omron, latching relay automotive, latching relay dual coil, latched electrical relay, latching relay for energy meter, latching relay for lighting control, latching relay for model railway, latching relay high current, latching impulse relay, latching relay lighting, nais latching relay, latching relay Omron g4q, magnetic latching relay operation, latching relay Panasonic, latching relay single coil, latching relay two coil, latching relay 12 volt, 1 coil latching relay, 4 pole double throw latching relay etc
