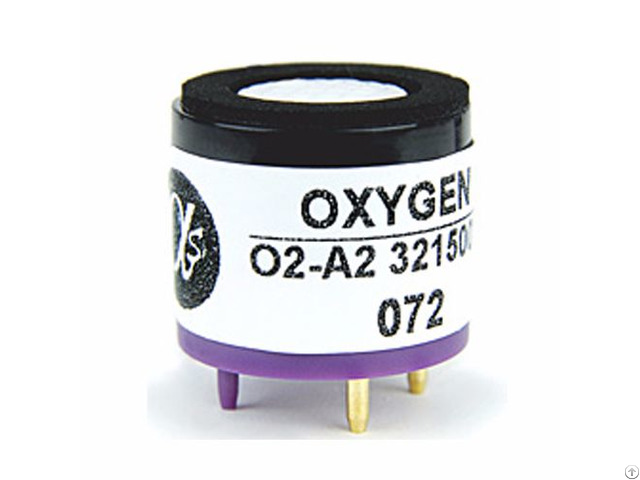

O2 A2 Electrochemical Oxygen Sensor - China
price: check with company for price
O2-A2 Oxygen Sensor PERFORMANCE Output: 80 to 120μA @ 20.9% O2
Response time: < 15 t90 (s) from 20.9% to 0% O2
Zero current: < 2.5μA in N2
Linearity|: 0.6% O2 deviation @ 10% O2
/
O2-A2 Oxygen Sensor LIFETIME
Output drift: < 1% change in output @ 3 months
Operating life: > 24months until 85% original output of 20.9% O2
/
O2-A2 Oxygen Sensor ENVIRONMENTAL Humidity Sensitivity: < 0.7% O2 change: 0% to 95% rh @ 40℃ CO sensitivity: 0.1% (change O2 reading) / % CO2 @ 5% CO2 Pressure sensitivity: < 0.1(% change of output)/(% change of pressure) @ 20kPa /
O2-A2 Oxygen Sensor KEY SPECIFICATIONS Temperature range: -30 to 55℃
Pressure range: 80 to 120 kPa
Humidity range: 5 to 95% rh non-condensing (0 to 99% rh short term)
Storage period: 6 months @ 3 to 20℃ (store in sealed pot, open circuit)
Load resistor: 47 to 100 Ω (recommended)
Diameter: 20mm (including label)
Height: 17.4mm (including foam ring)
Weight: < 16g
