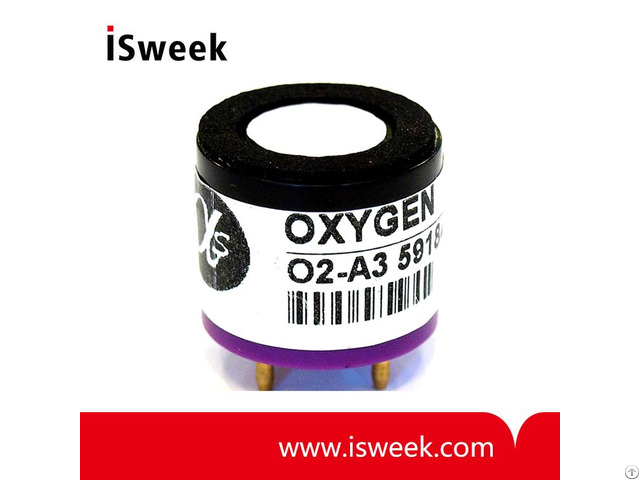

O2 A3 Electrochemical Oxygen Sensor - China
price: check with company for price
O2-A3 Oxygen Sensor O2 Sensor Description
Alphasense Oxygen sensors use capillary flow control.
/
Unlike partial pressure oxygen sensors, they have good pressure and temperature dependence, making them the best choice in safety applications.
/
Standard galavanic sensors use lead for greatest reliability but fixed lifetime.
/
O2-A3 Oxygen Sensorsize:
20mm diameter, the industry standard size for portable gas detectors
/
O2-A3 Oxygen Sensor O2 Sensor Specifications
• Output: 60 to 85 μA @ 22℃, 20.9% O2 • Response time t90 : < 15 (s) from 20.9% to 0% O2 • Operating life: > 36 months • Temperature range : -30 to 55 ℃ • Pressure range : 80 to 120 kPa • Humidity range : 5 to 95 % rh continuous • Height : 17.4 mm (including foam ring) • Weight: < 16 g
