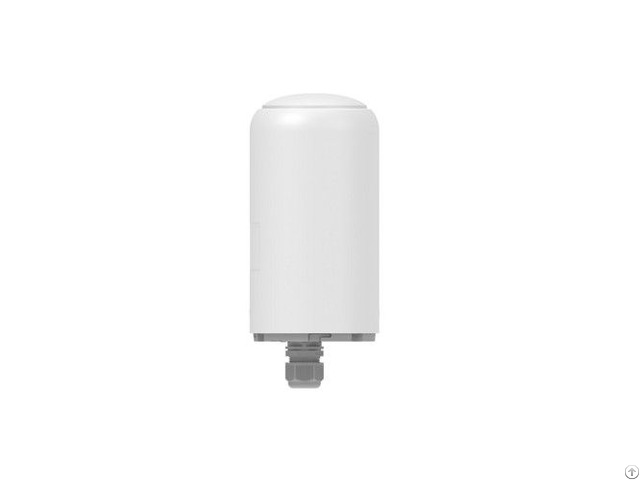

O2200 L12 O Lte Cat12 Outdoor Cpe - China

LTE ·3GPP Release 12, Cat 12 ·Max DL/UL Rate: LTE-FDD: 600Mbps/150Mbps LTE-TDD: 450Mbps/90Mbps ·Antenna: Internal and Omni-Directional ·Up to 5 APNs ·Multi Bands Combination: ·DL up to 3CA, 256QAM; UL 2CA, 64QAM ·DL 4x4 MIMO ·Band Width FDD: 5MHz, 10MHz, 15MHz, 20MHz TDD: 10MHz, 15MHz, 20MHz ·Transmission Mode FDD: TM2, TM3, TM4 TDD: TM2, TM3, TM4, TM7, TM8, TM9 ·Frequency Bands LTE FDD: Band 1/3/7/20/28 LTE TDD: Band 38/40/41/42/43 DL 2x2 MIMO: Band 20/28 DL 4x4 MIMO: Band 1/3/7/38/40/41/42/43 ·Antenna Antenna Gain: 700 MHz - 960 MHz: 1 - 2dBi 1710 MHz - 2690 MHz: 6 - 7dBi 3400 MHz - 3800 MHz: 8 - 9dBi Impedance: 50Ω ·CA Combinations DL 2CA: 1+1, 1+3, 1+7, 1+20, 1+28, 3+1, 3+3, 3+7, 3+20, 3+28, 7+1, 7+3, 7+7, 7+20, 7+28, 20+1, 20+3, 20+7, 28+3, 28+7, 38+38, 40+40, 40+42, 41+41, 41+42, 42+40, 42+42, 43+43 DL 3CA: 1+3+7, 1+3+20, 1+7+20, 3+1+7, 3+1+20, 3+3+1, 3+3+8, 3+3+20, 3+7+20, 7+1+3, 7+1+20, 7+3+20, 20+1+3, 20+1+7, 20+3+7, 28+3+3, 40+40+40, 40+42+42, 41+41+41, 41+41+42, 42+42+42 UL 2CA: 3+3, 7+7, 38+38, 40+40, 41+41, 42+42 ·Receiver Sensitivity Band 1: –100 dBm@5 MHz, –97 dBm@10 MHz, –95.2 dBm@15 MHz, –94 dBm@20 MHz Band 3: –97 dBm@5 MHz, –94 dBm@10 MHz, –92.2 dBm@15 MHz, and –91 dBm@20 MHz Band 7: –98 dBm@5 MHz, –95 dBm@10 MHz, –93.2 dBm@15 MHz, –92 dBm@20 MHz Band 20: –97 dBm@5 MHz, –94 dBm@10 MHz, –91.2 dBm@15 MHz, and –90 dBm@20 MHz Band 28: –98.5 dBm@5 MHz, –95.5 dBm@10 MHz, –93.7 dBm@15 MHz, and –91 dBm@20 MHz Band 38: –97 dBm@10 MHz, –95.2 dBm@15 MHz, and –94 dBm@20 MHz Band 40: –97 dBm@10 MHz, –95.2 dBm@15 MHz, and –94 dBm@20 MHz Band 41: –95 dBm@10MHz, -93.2 dBm@15MHz, -92 dBm@20 MHz Band 42: –96 dBm@10MHz, -94.2 dBm@15MHz, -93 dBm@20 MHz Band 43: –96 dBm@10MHz, -94.2 dBm@15MHz, -93 dBm@20 MHz ​ Interface ·1 x GE PoE LAN ·1 x SIM Card Slot(3FF, micro-SIM card) ·1 x LED Indicator for Power, System and LTE Signal Strength ·1 x Reset Button ·Built-in Omni-Directional LTE Antennas Certification ·CE, RoHS, REACH, WEEE ​ Router Functions ·DHCP Server ·NAT, DMZ ·VPN Passthrough ·IPv4, IPv6, IPv4/v6 ·Static Route, Policy Route ·IP Passthrough ·Firewall URL/Domain Filtering MAC/IP/Port Filtering ·System log ·Management: Web, SNMP, TR069 Environmental ·Size: Φ125 mm x 240 mm ·Net Weight: 1450g ·Power Supply: Non-Standard PoE ·Ingress Protection: IP65 ·ESD Protection: Contact±8KV, Air±10KV ·Operation Range: -40℃ to 55℃ ·Humidity: 10%-95%, non-condensing ·Installation: Pole-Mounted, Wall-Mount
