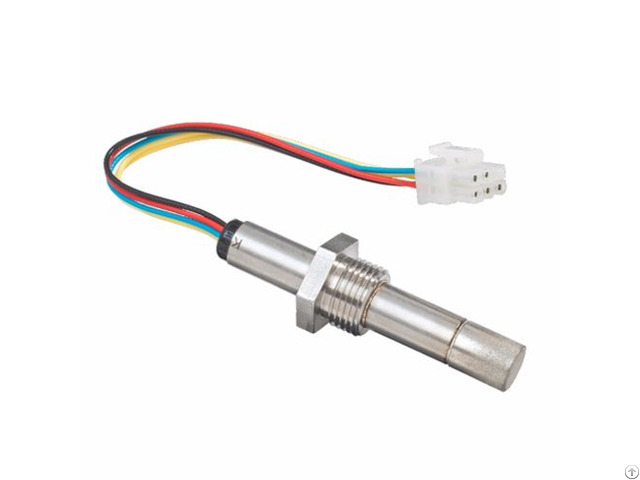

O2s Fr T2 18a Screwfit Zirconium Dioxide Oxygen Sensor - China
price: check with company for price
Zirconia O2 Sensors
Probe Series - Screw Fit Housing The Screwfit Range of zirconium dioxide oxygen sensors has a threaded probe design making it easy to install.
Suitable for combustion control within industrial coal/oil/gas/biomass boilers, continuous emission monitoring systems and controlled atmosphere monitoring.
FEATURES
• Zirconium dioxide (ZrO2) sensing elements
• Long life, non-depleting technology
• Integral heating element
• High accuracy
• Requires an external interface board to operate
• M18x1.5 screw mount BENEFITS
• No reference gas required
• No need for temperature stabilisation
• Probe mounting positions available: 55mm
• M18x1.5 screw mounting TECHNICAL SPECIFICATIONS
Heater voltage: - Operating: 4.35VDC ± 0.1VDC (1.85A) - Standby: 2VDC (0.85A)
Pump impedance at 700°C: < 6kΩ
Permissible gas temperature: -100°C to +250°C
Gas flow rate: 0 - 10 m/s
Repetitive permissible acceleration: 5g
Incidental permissible acceleration: 30g
Mounting thread: M18 x 1.5 OUTPUT VALUES
Oxygen pressure range: 2mbar - 3bar max
Accuracy: 5mbar max
Internal operational temp: 700°C
Response time (10 - 90% step): < 4s
Warm up time (prior to sensor operation): 60s
Warm up time (from standby): 20s
Output stabilisation time: ~ 180s
