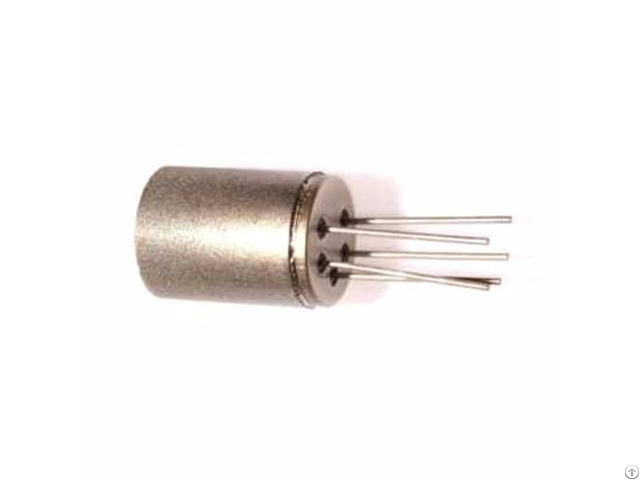

O2s Fr T3 Miniature Zirconium Dioxide Oxygen Sensor - China

price: check with company for price

Zirconia O2 Sensors

Miniature Series

/

The Miniature Zirconium Dioxide Oxygen Sensors can be PCB mounted and are used when measuring ambient gas with the complete sensor immersed in the atmosphere which is to be measured.

/

FEATURES

• Zirconium dioxide (ZrO2 ) sensing elements

• Long life, non-depleting technology

• Integral heating element

• High accuracy

• Requires an external interface board to operate

/

BENEFITS

• No reference gas required

• No need for temperature stabilisation

• PCB mountable

/

TECHNICAL SPECIFICATIONS

Heater voltage Standard response sensor: 4V DC ± 0.1V DC (1.7A) Standby: 1.65V DC (0.7A) Fast response sensor: 4.35V DC ± 0.1V DC (1.85A) Standby: 2V DC (0.85A)

Pump impedance at 700°C: < 6kΩ

Permissible gas temperature: -100°C to +250°C

Gas flow rate: 0 ~ 10 m/s

Repetitive permissible acceleration: 5g

Incidental permissible acceleration: 30g

/

OUTPUT VALUES

Oxygen pressure range: 2mbar - 3bar max

Accuracy: 5mbar max

Internal operational temperature: 700°C

Response time (10 - 90% step) Standard response sensor: <15s Fast response sensor: < 4s

Warm up time (prior to sensor operation): 60s

Warm up time (from standby): 20s

Output stabilisation time: ~ 180s
