O2s Fr T5 Flange Mounted Zirconium Dioxide Oxygen Sensor - China

price: check with company for price

O2s Fr T5 Flange Mounted Zirconium Dioxide Oxygen Sensor

Products Photos Catalog O2s Flange Mounted Photos Catalog

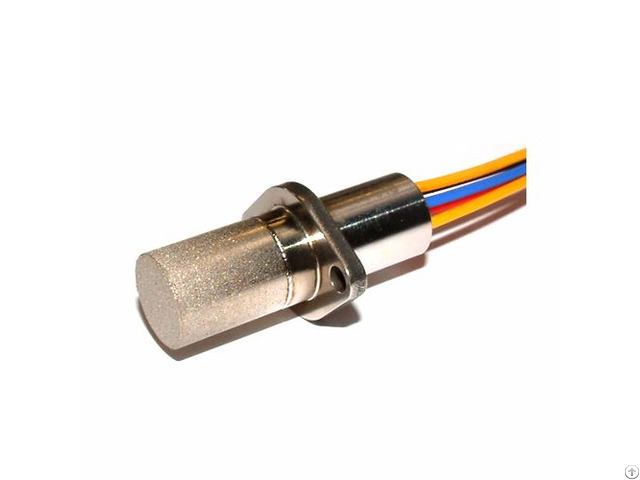

O2S-FR-T5 Oxygen Sensors - Flange Mounted

/

FEATURES

• Oxygen pressure range 2 mbar - 3bar

• Zirconium dioxide (ZrO2 ) sensing elements

• Non-consumption technology

• Integral heating element

• No need for temperature stabilisation

• No reference gas required

• High accuracy

• Linear output signal

• Operates with external interface boards

/

SPECIFICATIONS

Heater Voltage Porous Cap (15mm): 4.35V DC ± 0.1V DC (1.85A) Stand by: 2V DC (0.85A)

Pump resistance @ 700°C: < 6kΩ

Permissible gas temperature: -100 to 250°C

Gas flow rate: 0 to 10 m/s

Repetitive permissible acceleration: 5 g

Incidental permissible acceleration: 30 g


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: June 8, 2017

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
