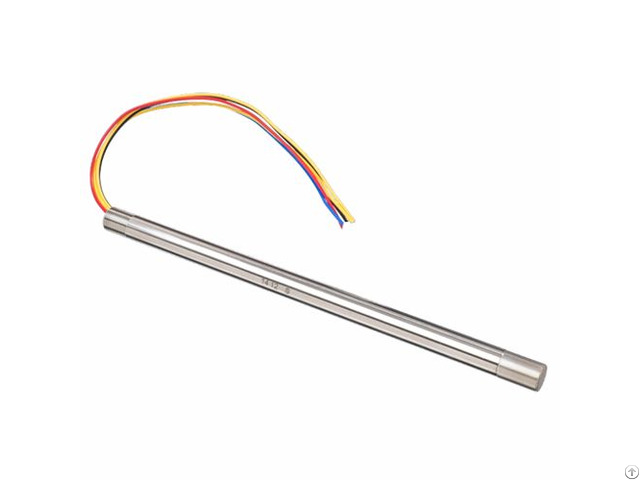

O2s T6 Sh Long Probe Zirconium Dioxide Oxygen Sensor - China

price: check with company for price

Zirconia O2 Sensors

Probe Series - Long Housing

/

FEATURES

• Zirconium dioxide (ZrO2) sensing elements

• Long life, non-depleting technology

• Integral heating element

• High accuracy

• Requires an external interface board to operate

/

BENEFITS

• No reference gas required

• No need for temperature stabilisation

• Two lengths available; 220mm and 400mm

/

TECHNICAL SPECIFICATIONS

Heater voltage Operating: 4V DC ± 0.1V DC (1.7A) Standby: 1.65V DC (0.7A)

Pump impedance at 700°C: < 6kΩ

Permissible gas temperature Standard temperature: -100°C to +250°C High temperature: -100°C to +400°C

Gas flow rate: 0 - 10 m/s

Repetitive permissible acceleration: 5g

Incidental permissible acceleration: 30g

/

OUTPUT VALUES

Oxygen pressure range: 2mbar - 3bar max

Accuracy: 5 mbar max

Internal operational temperature: 700°C

Response time (10 - 90% step): < 15s

Warm up time (prior to sensor operation): 100s

Warm up time (from stand by): 20s

Output stabilisation time: ~ 180s


Company Contact:


  • Phone: 86-0755-83289036

  • Address: 16 Floor, Building #3, Zhongke Mansion, Gaoxin South 1st Rd, Hi-Tech Park, Nanshan, Shenzhen , Guangdong , China

  • Email: Email

Published date: June 6, 2017

  • Business Description: ISweek has been devoted to providing one-stop product distributing and purchasing solution and service for purchasers, suppliers, traders and manufactures from all over the world in industrial science and technology industry.

    We are able to provide high-quality original products and thorough technical support and after-sale service to our member users.
