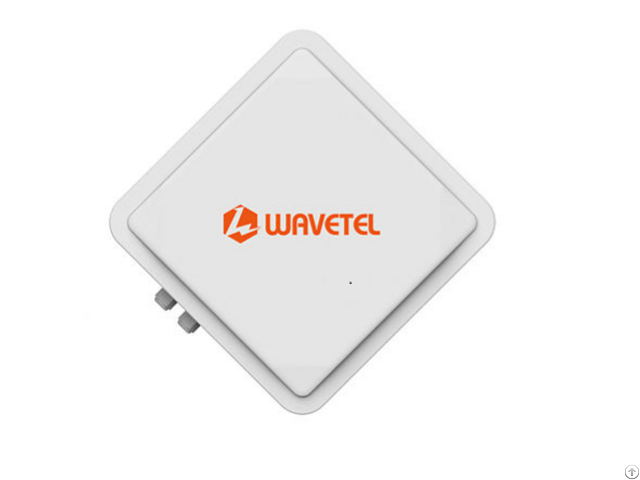

O3212 5g Outdoor Cpe - China

A 5G Outdoor CPE/Router.

It supports NSA and SA mode and could reach up to 2.5Gbps downlink peak rate.

With PoE power supply and IP66 design, O3212 is suitable for most outdoorsy environments.

Plus the high-gain directional antenna, O3212 is able to help operators and carriers quickly expand their networks and deliver ultra-fast internet access to their subscribers.

Cellular · 3GPP Release 15, NSA&SA · DL MIMO 4x4 LTE: B1/38/41/42/43 5G NR: n1/38/41/77/78/79 · Modulation: NR DL/UL: 256QAM/256QAM LTE DL/UL: 256QAM/64QAM · Peak Rate: ENDC Downlink: 2.5Gbps ENDC Uplink: 600Mbps SA Downlink: 2.1Gbps SA Uplink: 900Mbps LTE Downlink: 1Gbps (Cat 16) LTE Uplink: 150Mbps (Cat 13) · Channel Bandwidth LTE: 1.4/3/5/10/15/20MHz 5G NR: 5-100MHz · Multi-APN · SIM-Lock, Band Lock · Frequency Band: 5G: n1/3/5/8/20/28/38/40/41/7 7/78/79 FDD-LTE: 1/3/5/7/8/18/19/20/28/32 TDD-LTE: 38/40/41/42/43 WCDMA: 1/3/5/8/19 (Please contact us for more frequency band combinations) Interface · 1 * 2.5Gbps PoE LAN · 1 * Gigabit Ethernet LAN · 1 * SIM Card Slot · Built-in WCDMA/LTE/5G Antennas · Built-in WiFi (for local access only) · 1 * Built-in GPS Antenna(optional) · 1 * Reset Button ​ Data Functions · WAN Type: Static, DHCP, PPPoE, L2TP, PPTP · Networking Interface: Multi-WAN, Bridge Mode, 802.1Q · Advanced Routing Static Route, Policy Route · Internal Address Management: DHCP Server, DHCP Relay ·Networking Protocols TCP/IP(IPv4/IPv6), UDP, RTP, SNTP, NAT, DHCP, DNS, DDNS ·IPTV: IGMP Proxy/Snooping, IPTV Bridge · WiFi: For local configuration only Firewall & Security · Firewall Protection IDS&IPS, Block Ping/ICMP/IDENT IP and MAC Address Bind SPI Firewall, Port scan restriction · Access control Blocking by URL, IP Address, Mac Address, Protocol Type, Port · VPN: L2TP, PPTP, IPSec, EoIP · QoS: Based on Destination/Source IP/MAC, Application, DSCP, Packet Priority, Bandwidth · NAT: RIP, Port Forwarding/Triggering, DMZ, ALG Management · Management Protocol: WEB, Telnet, SNMP v1/v2, TR069 Environmental ·Size: 280mm x 280mm x 137mm ·Net Weight: 1250g ·Power Supply: Standard PoE 48V ·Ingress Protection: IP66 ·Operation Range -40℃ to 75℃, -40℉ to 167℉ ·Humidity 10%-90% non-condensin
