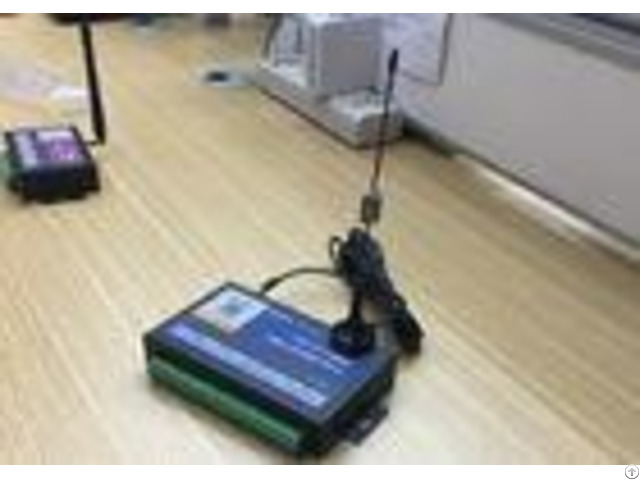

Oled Display Iot Gateway Device 3g 4g Cwtio Protocol 2a 125vac Activate Output - China

GSM GPRS WiFi 3G 4G Modbus IOT Gateway with OLED display System Feature # Industrial NXP 32-bit ARM MCU # Reliable performance with built-in double watchdog, 247 operation # Support signal fileter # Network-reconnect and retransmission to ensure data accurately transmit # Automatically or manually update interior clock by sms or NTP or server # Automatically execute preset task by schedule(second, minute, day, week, month) # Can automatically execute tasks according to preset Events # Provide configure software, visual programming, over 100 parameters can be set # Optional inside lithium battery for power lost alarm and keep 8-20 hours working DI feature # Monitor dry contact(NO or NC) DO(T) feature # Relay drivable output(drive voltage=power supply voltage, Drive current500mA) # on/off/pulse DO by remote control or local event # Remain down status when power lost DO(K) feature # Relay output(NO, contact load: 2A / 125VAC, 220VDC) # DO can be activated by remote or local schedule # Status memory function for power lost AI feature # Standard 4-20mA (option: 0-5V) signal in, Sampling frequency: 33Hz, 10-bit precision) # Convert signal to actual measure value, support adjustment # Configurable parameters for signal acquisition, alarm, data communication # Sensor disconnect alarm SMS feature # Preset 10 phone numbers (support distribute authority to receive sms) # Send sms alarm when input is triggered or reach alarm level # Customizable sms messages, like alarm, receove, report # Query any IO channels status or value via sms command # Activate output by sending sms # Can set interval to report IO channel's status or value by sms # Sending sms command to update setting # Sms remind for sim card overdue # Power lost and recover alarm by sending sms # Wireless network communication # Option network: cellular(2g/3g/4g) or Wi-Fi # Support TCP/IP two-way communication with Max.

4 servers(IP or domain) # Support post or respond mode for data communication # Communication protocol: Modbus TCP, http post, Cwt_IO(two-way communication) # Can forward data between wireless network with RS485 or RS232 Modbus feature # Can be modbus master read/write salve over RS485 # As a RS485 I O module to be polled by modbus master # Support Modbus RTU to TCP convert over Ethernet or GPRS/3G TI feature # Can set high or lower level to alarm, data log via wireless network # Can switch Fahrenheit or centigrade # Support probe disconnect alarm
