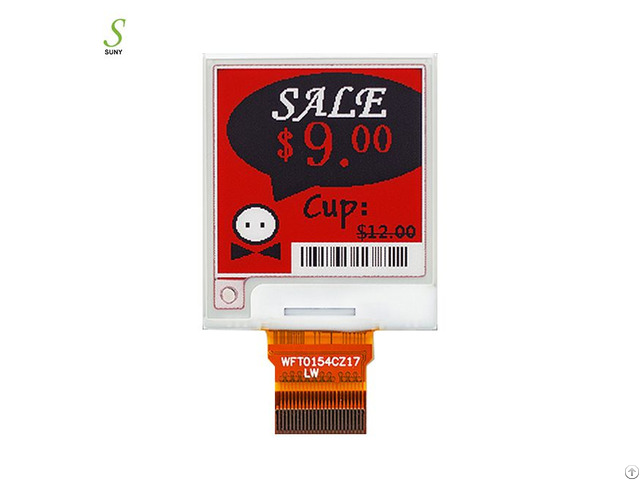

One Point Five Four Epd Electronic Digital E Ink Display Module - China

Quick Details:

Display Size: 1.54"

Place of Origin: Guangdong China

Model Number: DEPG-0154

Brand Name: Suny

Display Size: : 1.54inch

Resolution(mm): 152(H) * 152(V)pix / 200(H)* 200(V) pix

Operation Temperature: 0-50ºC / 0-40ºC/-25ºC-+10ºC/10- 40ºC

Pixel Configuration: Square

Pixel Pitch: 0.181* 0.181 mm / 0.135* 0.135 mm

Display Color: B/W or B/W/R or Freezer or B/W/Y

Active Area: 27.512(H) * 27.512(V)

Outline Dimension: 37.32(H)* 31.8(H)*1 - 05(D) mm

DPI: 140 / 188

Weigt: 2.1± 0.2 g

Features:

1.152×152 pixels display

2 - High contrast High reflectance

3 - Ultra wide viewing angle Ultra low power consumption

4 - Pure reflective mode

5 - Bi-stable display

6 - Commercial temperature range

7 - Landscape portrait modes

8 - Hard-coat antiglare display surface

9 - Ultra Low current deep sleep mode

10 - On chip display RAM

11 - Waveform can stored in On-chip OTP or written by MCU

12 - Serial peripheral interface available

13 - On-chip oscillator

14 - On-chip booster and regulator control for generating VCOM, Gate and Source driving voltage

15 - I2C signal master interface to read external temperature sensor

16 - Built-in temperature sensor
