Opc N2 Alphasense Pm2 5 Particle Sensor

Products Photos Catalog Opc Alphasense Pm2 Photos Catalog

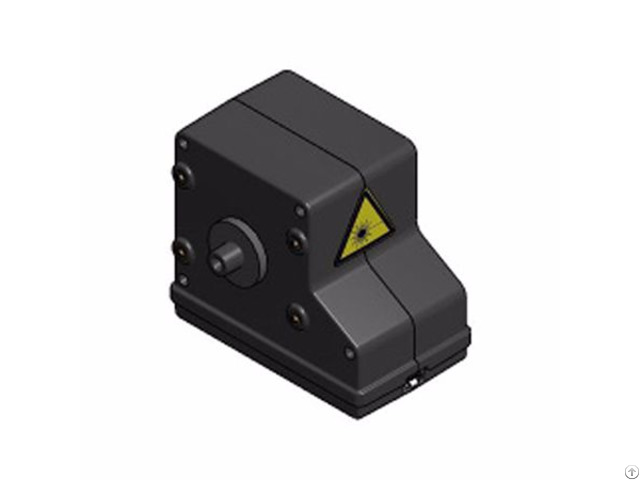

Alphasense PM2.5 Particle Sensor OPC-N2 Description

* Micro USB socket allows on-site firmware updates

* Onboard data logging using optional 16GB SD card: 12 months' capture

* SPI control of fan and laser for lowest power

* Factory set: particle size particle density/Total RI bin weighting for respirable profiling

/

Alphasense PM2.5 Particle Sensor OPC-N2 MEASUREMENT Particle range: 0.38 to 17 Spherical equivalent size (based on RI of 1.5)

Size categorisation: 16 Number of software bins

Sampling interval: 1.4 to 10Histogram period (seconds)

Total flow rate (typical): 1.2 L/min Sample flow rate (typical): 220mL/min

Max particle count rate: 10, 000Particles/second

Max coincidence probability: 0.84%concentration at 10 6 particles/L; 0.24 %concentration at 500 particles/L

/

Alphasense PM2.5 Particle Sensor OPC-N2 POWER Measurement mode: 175mA (typical)

Laser on, fan off: 95mA (typical)

Voltage range: 4.8 to 5.2VDC

Switch-on transient: < 5000mW for 1ms

/

Alphasense PM2.5 Particle Sensor OPC-N2 DATA Digital interface/connections: Micro USB (progamming), SPI (data) Data storage: 16GB micro-SD (.

CSV format) /

Alphasense PM2.5 Particle Sensor OPC-N2 KEY SPECIFICATIONS

Digital interface: SPI (Mode 1), USB Temperature range: -10 to 50 ℃ Humidity range: 0 to 99 % rh (non-condensing)

Weight: < 105 g
